Description

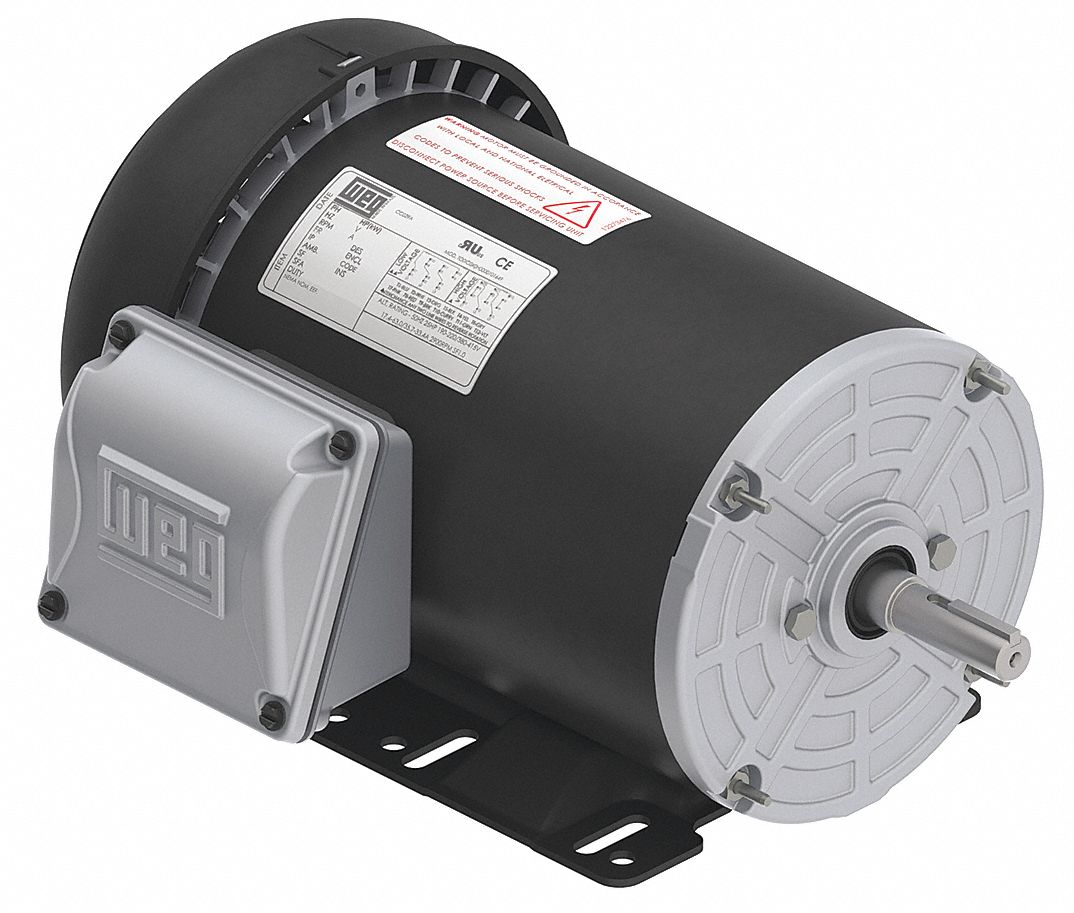

General Purpose Motor Three Phase Motor Design 3-Phase 3/4 HP Nameplate RPM 1 755 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 2.
70-2.
44/1.
22 A 56 Frame Usable @ 208V Yes Usable @ 200V No Hz 60 Hz Motor Service Factor 1.
15 Max Ambient Temp 104 Degrees F Motor Thermal Protection None Duty Cycle Continuous Ins.
Class F Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position All Angle- Alternate Part Numbers- 35JF90- 7518ES3E56S- 35JF90
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
ZZ
Manufacturer Name:
.7518ES3E56-S
Manufacturer Part Number:
WEG
