Description

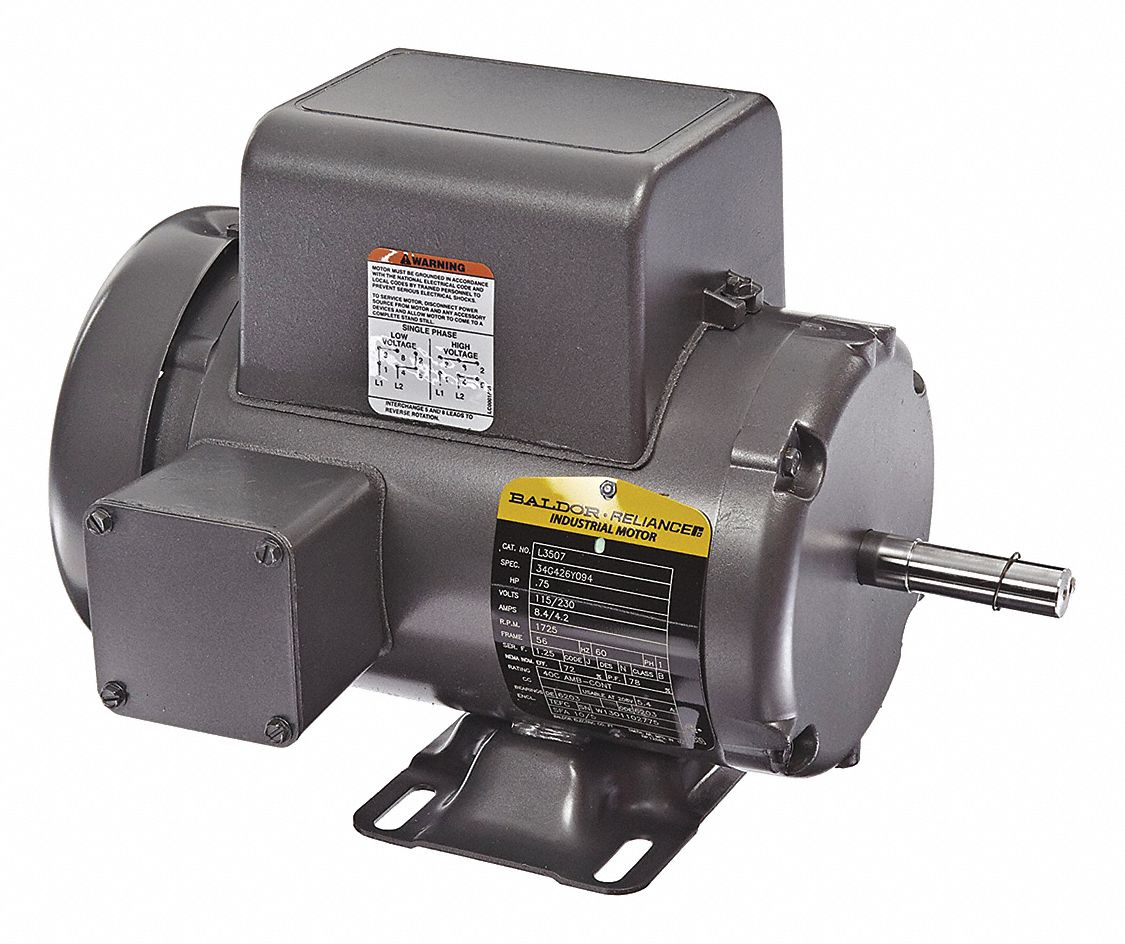

General Purpose Motor Single Phase Motor Design Capacitor-Start/Run 3/4 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 115/230V AC Full Load Amps 8.
4/4.
2 A 56 Frame Usable @ 208V Yes Usable @ 200V No Hz 60 Hz Motor Service Factor 1.
25 Max Ambient Temp 104 Degrees F Motor Thermal Protection None Duty Cycle Continuous Ins.
Class F NEMA Design N Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base
Features
Extra Information
Processing Time:
2-3 days
