Description

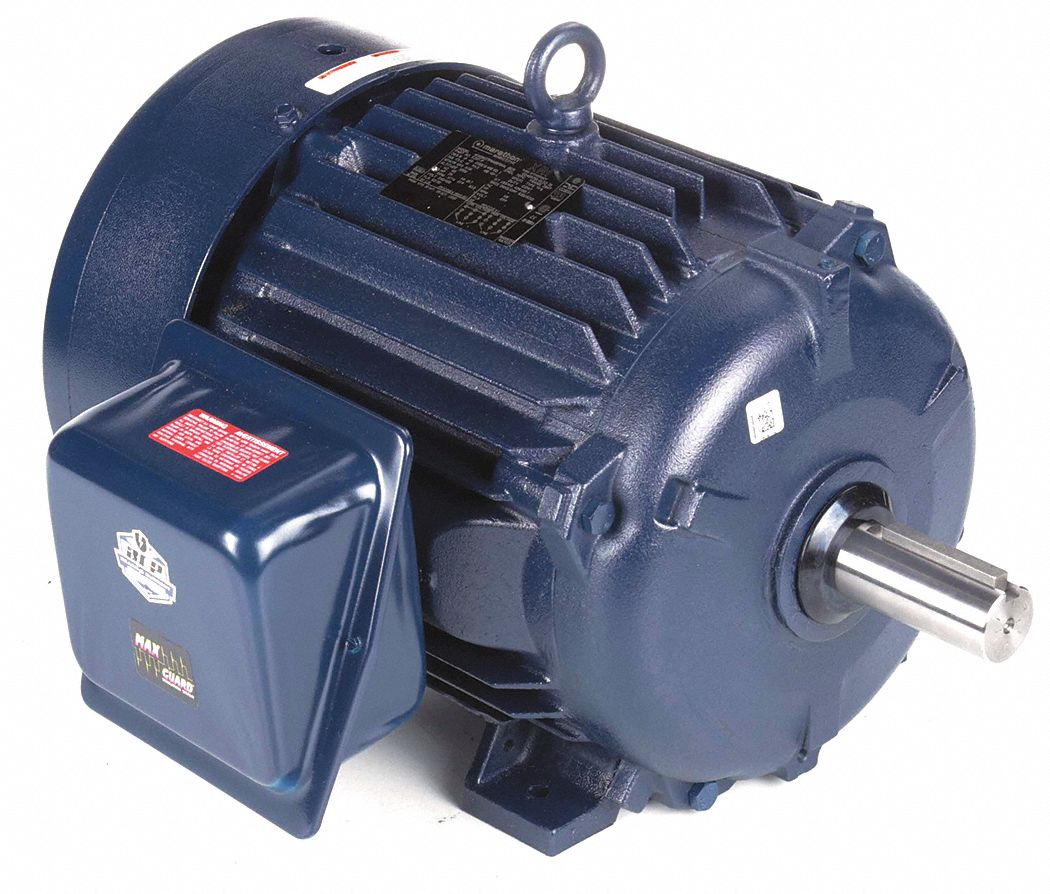

General Purpose Motor Three Phase Motor Design 3-Phase 25 HP Nameplate RPM 1 775 No of Speeds 1 Voltage 230/460V AC Full Load Amps 62.
0/31.
0 A 284T Frame Usable @ 208V No Usable @ 200V No Hz 60/50 Hz Motor Service Factor 1.
15 Max Ambient Temp 104 Degrees F Motor Thermal Protection None Duty Cycle Continuous Ins.
Class F NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base
