Description

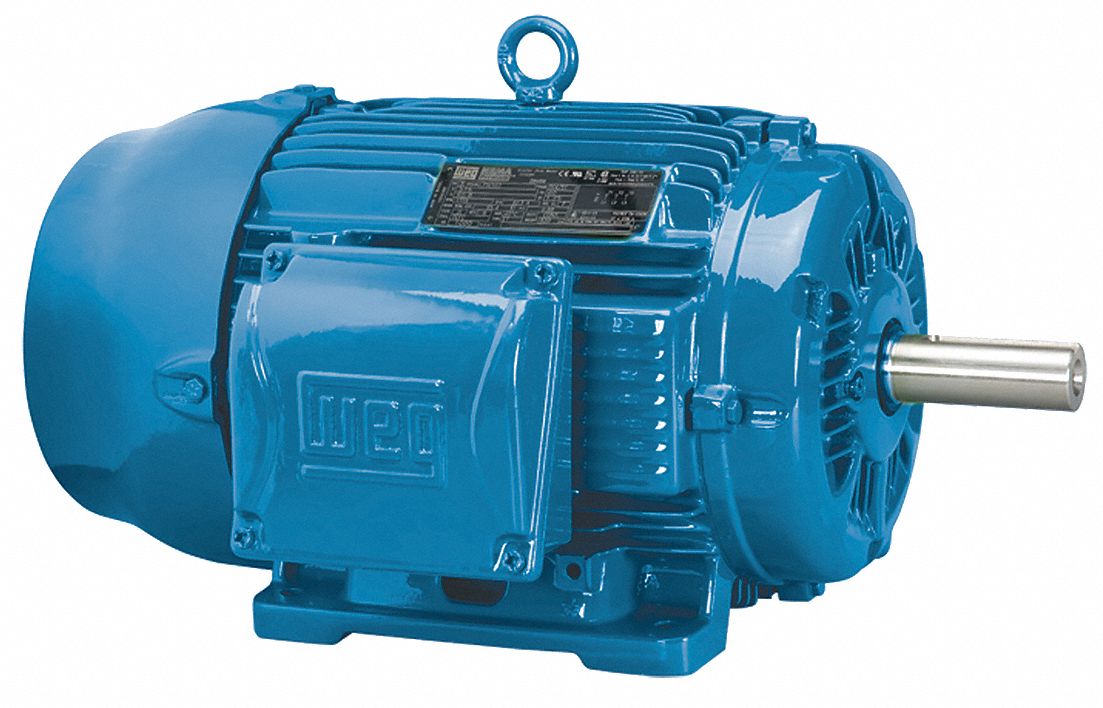

General Purpose Motor Three Phase Motor Design 3-Phase 20 HP Nameplate RPM 3 520 No of Speeds 1 Voltage 230/460V AC Full Load Amps 46.
4/23.
2 A 256T Frame Usable @ 208V Yes Usable @ 200V No Hz 60 Hz Motor Service Factor 1.
25 Max Ambient Temp 104 Degrees F Motor Thermal Protection None Duty Cycle Continuous Ins.
Class F NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base- Alternate Part Numbers- 6AJD5- 02036ET3E256TW22- 6AJD5
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
ZZ
Manufacturer Name:
02036ET3E256T-W22
Manufacturer Part Number:
WEG
