Description

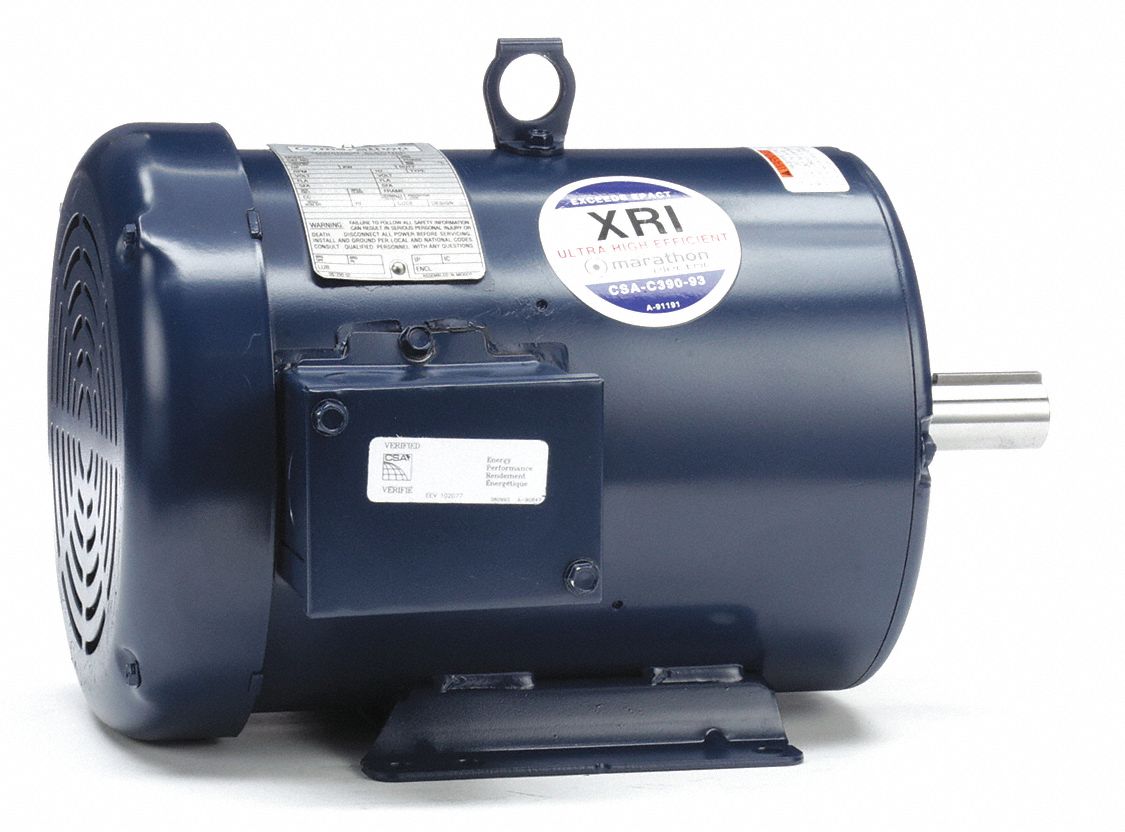

General Purpose Motor Three Phase Motor Design 3-Phase 2 HP Nameplate RPM 1 175 No of Speeds 1 Voltage 230/460V AC Full Load Amps 7.
3-6.
4/3.
2 A 184T Frame Usable @ 208V No Usable @ 200V No Hz 60/50 Hz Motor Service Factor 1.
15 Max Ambient Temp 104 Degrees F Motor Thermal Protection None Duty Cycle Continuous Ins.
Class F Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal
Features
Extra Information
Processing Time:
2-3 days
