Description

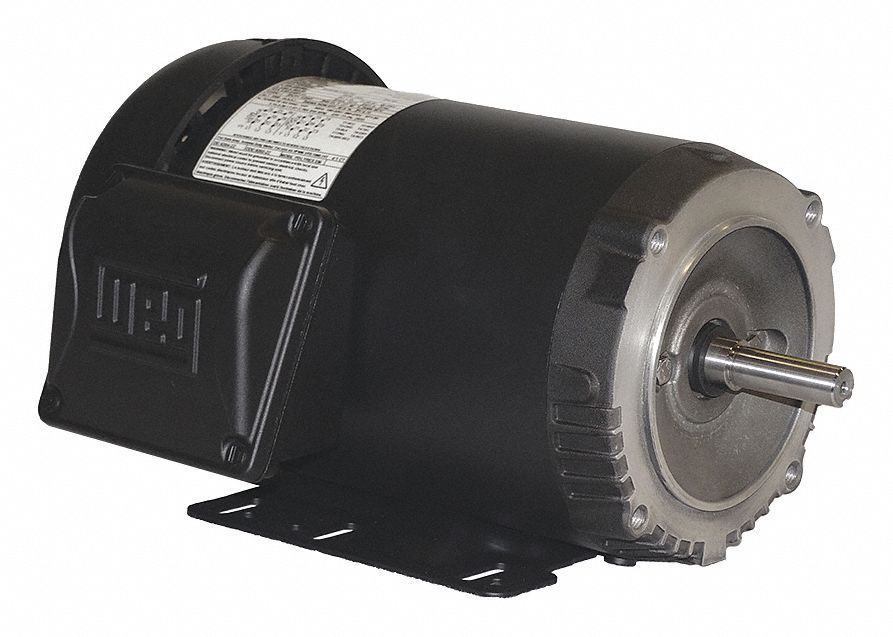

General Purpose Motor Three Phase Motor Design 3-Phase 1 HP Nameplate RPM 3 435 No of Speeds 1 Voltage 230/460V AC Full Load Amps 3.
00/1.
50 A 56C Frame Usable @ 208V Yes Usable @ 200V No Hz 60 Hz Motor Service Factor 1.
15 Max Ambient Temp 104 Degrees F Motor Thermal Protection None Duty Cycle Continuous Ins.
Class F NEMA Design None Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base- Alternate Part Numbers- 52XR32- 00136ET3EW56CS- 52XR32
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
ZZ
Manufacturer Name:
00136ET3EW56C-S
Manufacturer Part Number:
WEG
