Description

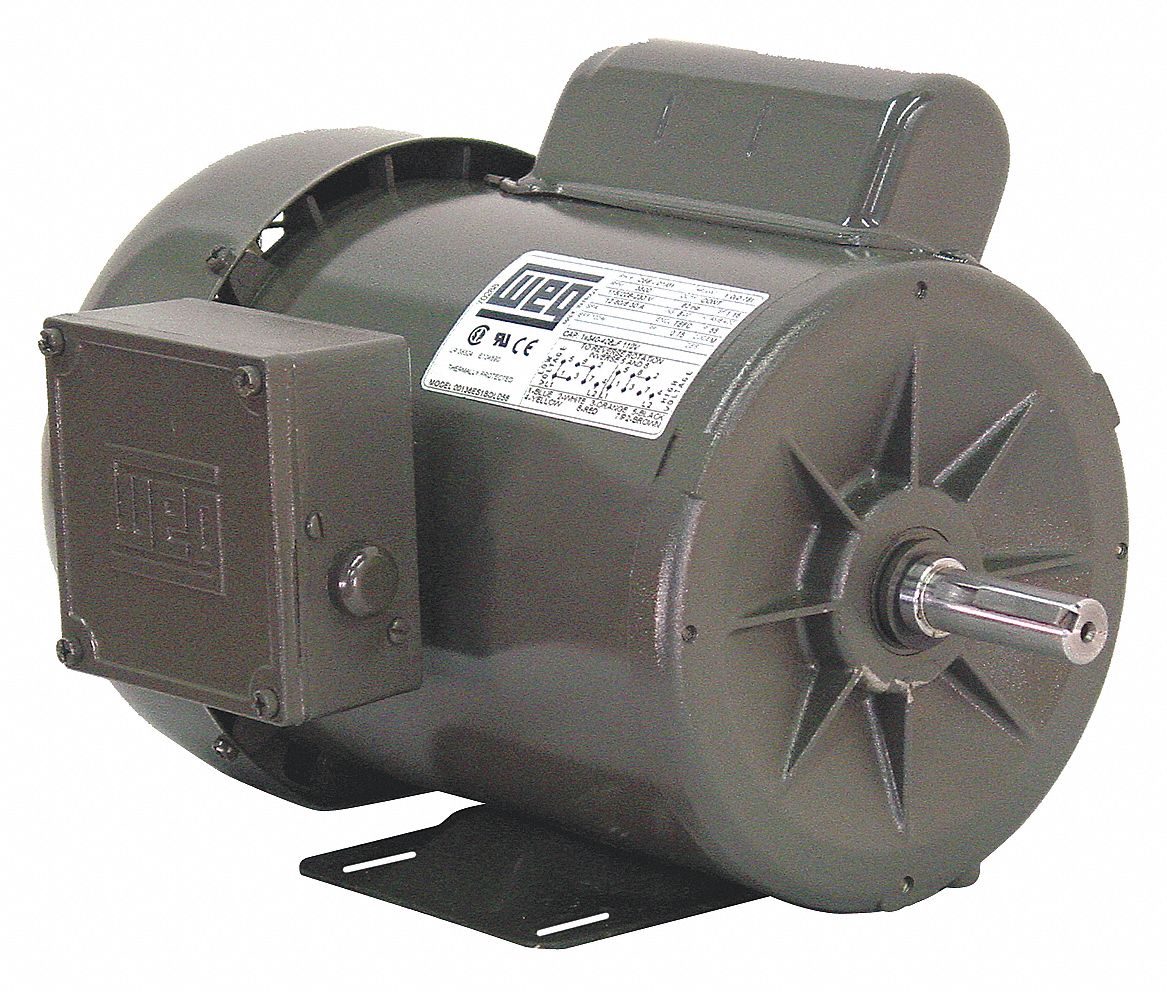

General Purpose Motor Single Phase Motor Design Capacitor-Start/Run 1 HP Nameplate RPM 1 745 No of Speeds 1 Voltage 115/208-230V AC Full Load Amps 13.
6/7.
52-6.
80 A 56 Frame Usable @ 208V Yes Usable @ 200V No Hz 60 Hz Motor Service Factor 1.
15 Max Ambient Temp 104 Degrees F Motor Thermal Protection None Duty Cycle Continuous Ins.
Class F NEMA Design L Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base- Alternate Part Numbers- 45KG03- 00118ES1B56S- 45KG03
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
ZZ
Manufacturer Name:
00118ES1B56-S
Manufacturer Part Number:
WEG
