Report item
Description

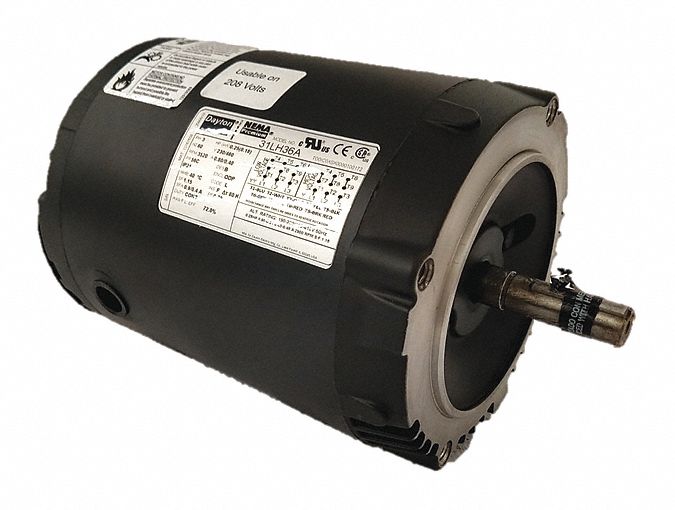

General Purpose Motor Three Phase Motor Design 3-Phase 1/4 HP Nameplate RPM 3 520 No of Speeds 1 Voltage 230/460V AC Full Load Amps 0.
80/0.
40 A 56C Frame Hz 60 Hz Motor Service Factor 1.
35 Max Ambient Temp 104 Degrees F Motor Thermal Protection None Duty Cycle Continuous Ins.
Class F Motor Enclosure Design Open Dripproof Motor Shaft Rotation CW/CCW Motor Mounting Type Face Motor Mounting Position Horizontal Inverter Rated Yes Motor Shaft Design Keyed
Features
Extra Information
Processing Time:
2-3 days
