Description

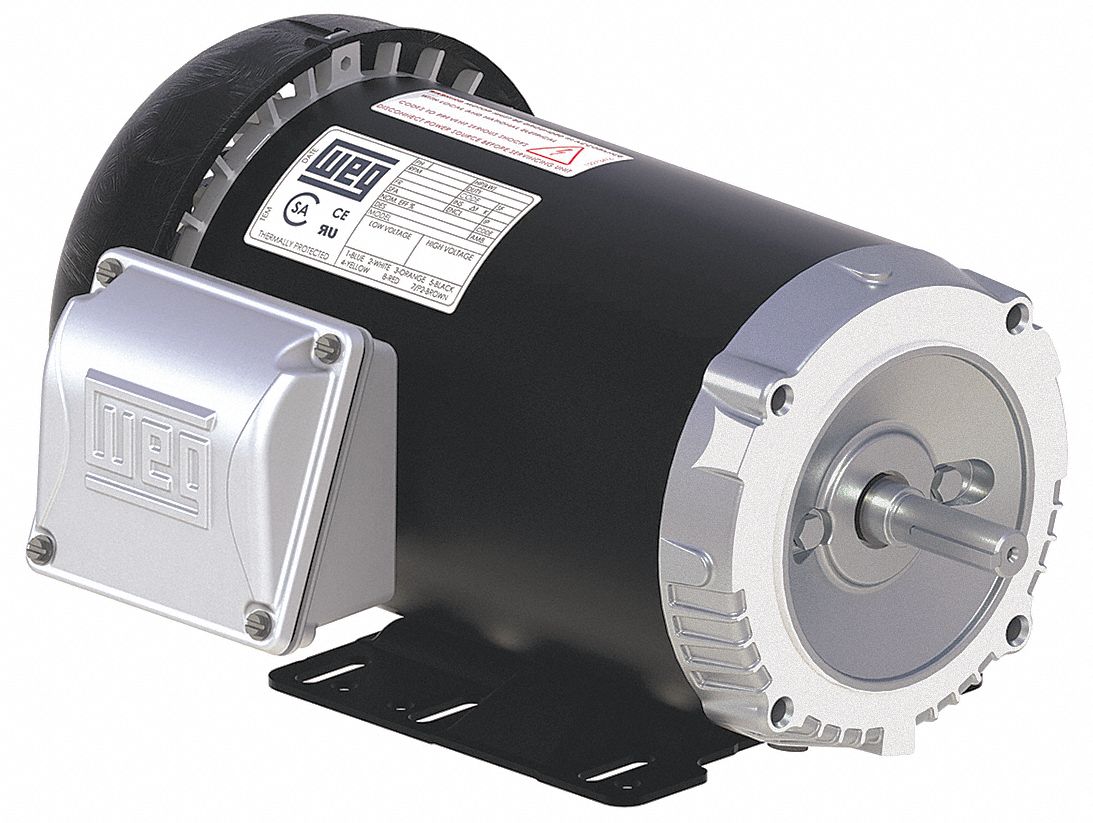

General Purpose Motor Three Phase Motor Design 3-Phase 1/4 HP Nameplate RPM 1 765 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 1.
15-1.
04/0.
521 A 56C Frame Usable @ 208V Yes Usable @ 200V No Hz 60 Hz Motor Service Factor 1.
15 Max Ambient Temp 104 Degrees F Motor Thermal Protection None Duty Cycle Continuous Ins.
Class F Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Face/Base Motor Mounting Position All Angle- Alternate Part Numbers- 35JF99- 2518ES3E56CS- 35JF99
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
ZZ
Manufacturer Name:
.2518ES3E56C-S
Manufacturer Part Number:
WEG
