Description

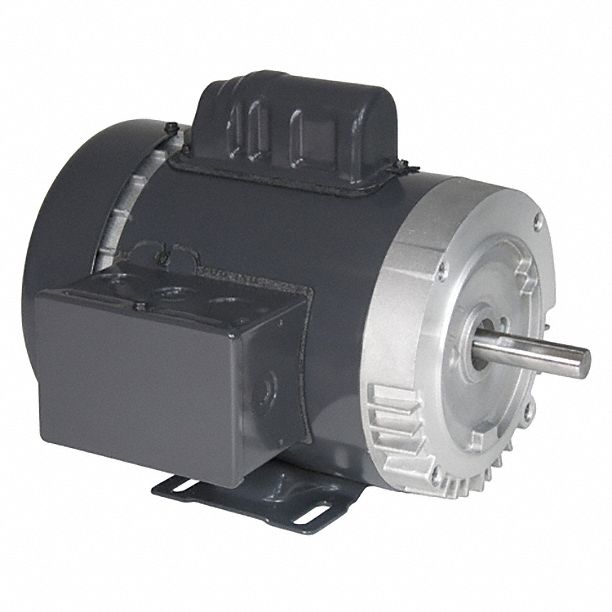

General Purpose Motor Single Phase Motor Design Capacitor-Start 1/3 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 115/208-230V AC Full Load Amps 6.
6/3-3.
3 A 56C Frame Usable @ 208V Yes Usable @ 200V No Hz 60 Hz Motor Service Factor 1.
15 Max Ambient Temp 104 Degrees F Motor Thermal Protection None Duty Cycle Continuous Ins.
Class B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position All Angle- Alternate Part Numbers- 55MM45- T13C2JC- 55MM45
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
MX
Manufacturer Name:
T13C2JC
Manufacturer Part Number:
U.S. MOTORS
