Description

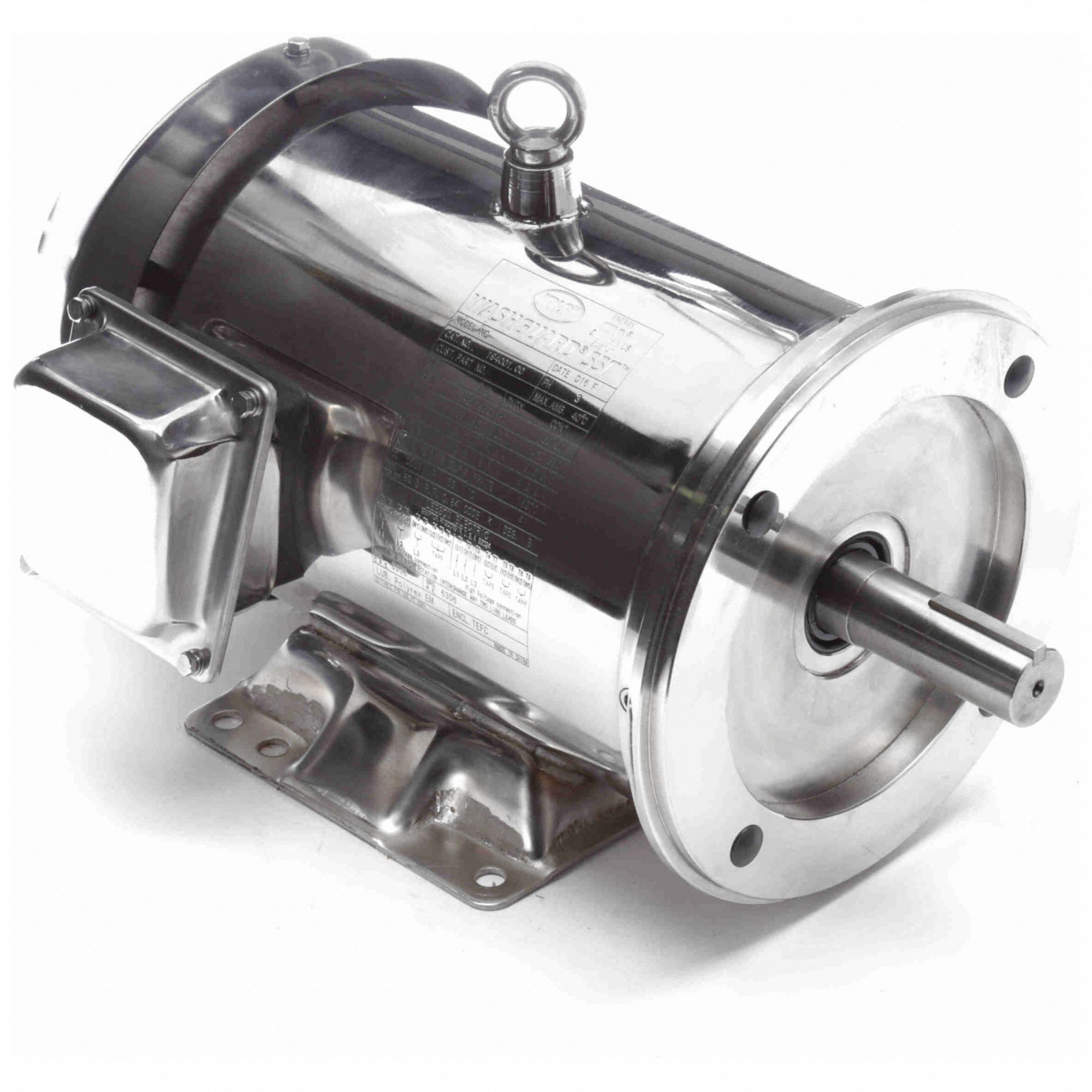

Washdown Motor Three Phase Motor Design 3-Phase 30 HP Nameplate RPM 1 770 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 76-68/34 A 286TC Frame Usable @ 208V Yes 60 Hz Motor Service Factor 1.
15 Motor Thermal Protection None Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Inverter Rating 2 1- Alternate Part Numbers- 798GC1- 19401500
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
CN
Manufacturer Name:
194015
Manufacturer Part Number:
LEESON
