Description

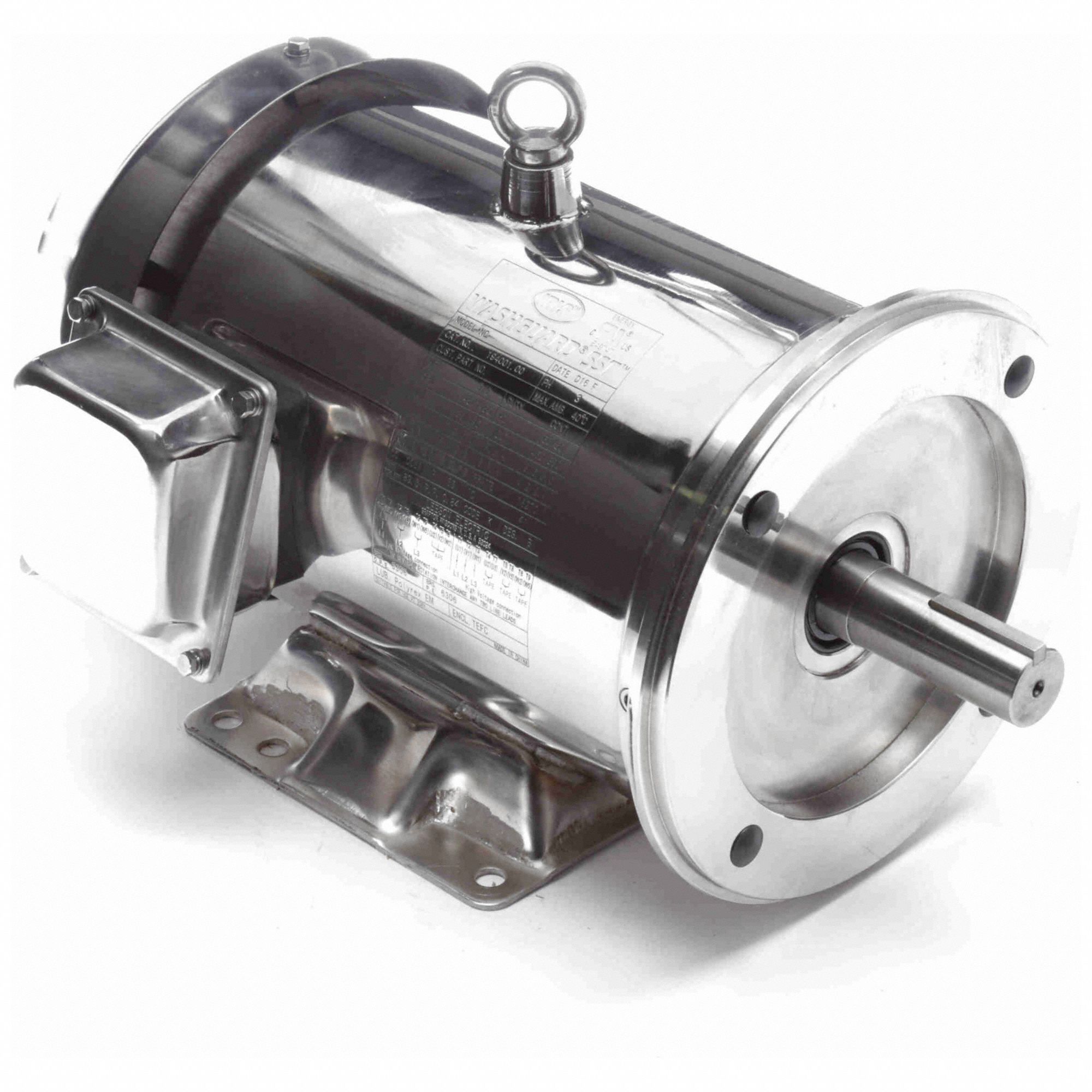

Washdown Motor Three Phase Motor Design 3-Phase 15 HP Nameplate RPM 3 550 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 38-34.
5/17.
2 A 254TC Frame Usable @ 208V Yes 60 Hz Motor Service Factor 1.
15 Motor Thermal Protection None Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Inverter Rating 4 1- Alternate Part Numbers- 798GA4- 19400800
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
CN
Manufacturer Name:
194008
Manufacturer Part Number:
LEESON
