Description

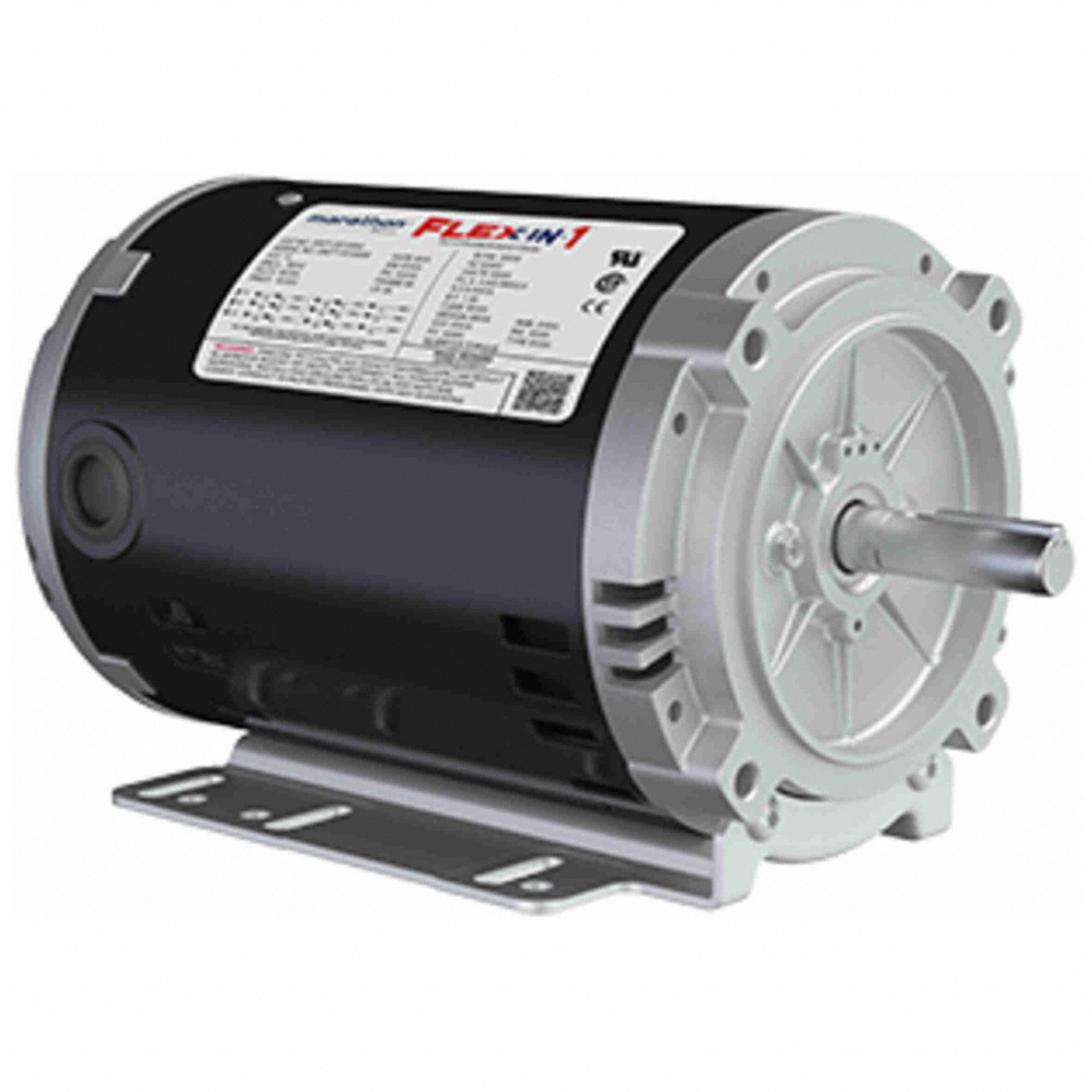

General Purpose Motors Three Phase Motor Design 3-Phase 1 1/2 HP Nameplate RPM 3 450 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 4.
2-4.
0/2.
0 A 56HC Frame Usable @ 208V Yes Hz 60 Hz Motor Service Factor 1.
15 Max Ambient Temp 104 Degrees F Motor Thermal Protection None Duty Cycle Continuous Ins.
Class F NEMA Design F Motor Enclosure Design Open Dripproof Motor Shaft Rotation CCW Motor Mounting Type Universal Motor Mounting Position Horizontal Inverter Rated Yes- Alternate Part Numbers- 801VA5- 056T34D15648
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
MX
Manufacturer Name:
056T34D15648
Manufacturer Part Number:
MARATHON MOTORS
