Description

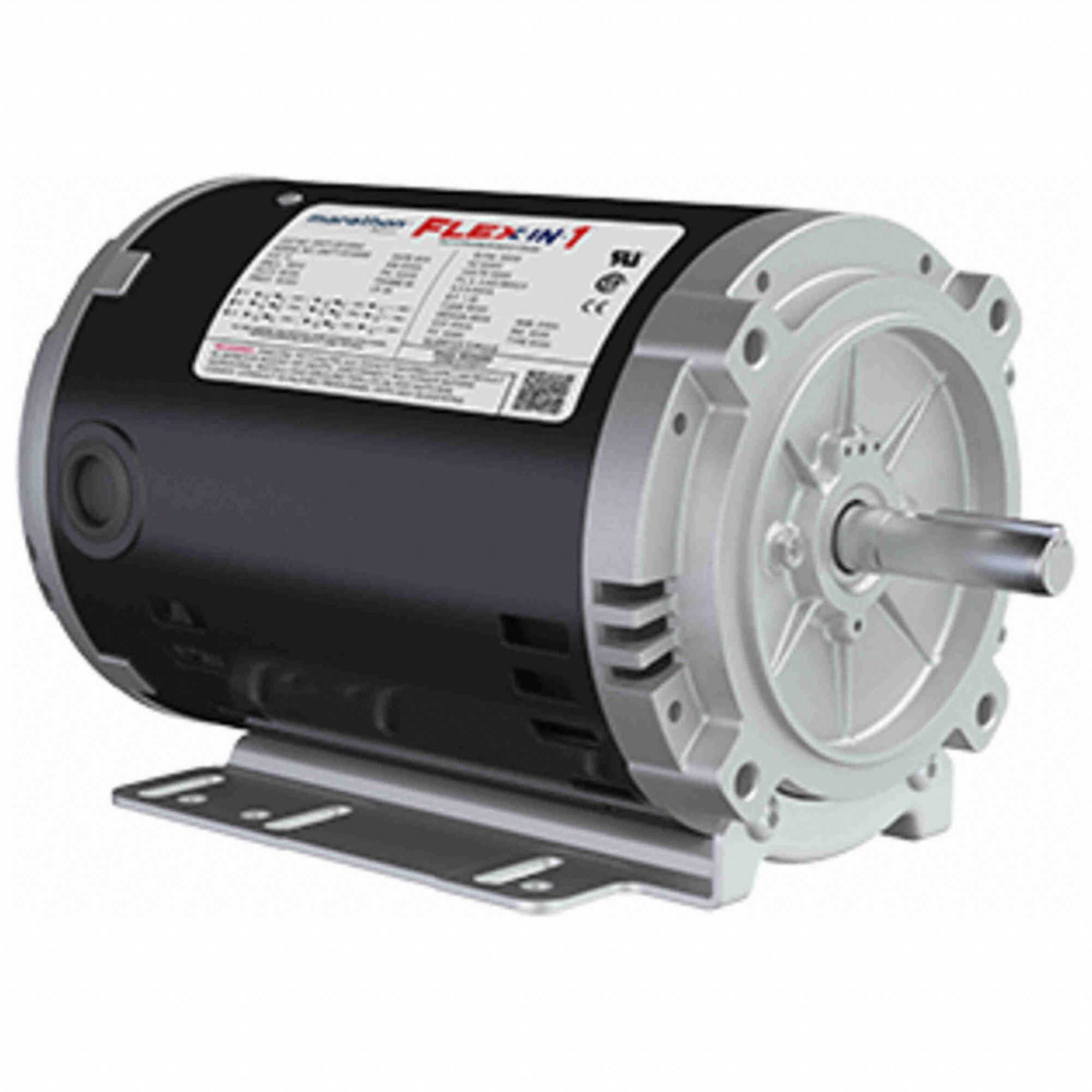

General Purpose Motors Three Phase Motor Design 3-Phase 1/2 HP Nameplate RPM 1 140 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 2.
1-2.
2/1.
1 A 56HC Frame Usable @ 208V Yes Hz 60 Hz Motor Service Factor 1.
25 Max Ambient Temp 104 Degrees F Motor Thermal Protection None Duty Cycle Continuous Ins.
Class F NEMA Design F Motor Enclosure Design Open Dripproof Motor Shaft Rotation CCW Motor Mounting Type Universal Motor Mounting Position Horizontal Inverter Rated Yes- Alternate Part Numbers- 801VC9- 056T11D15533
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
MX
Manufacturer Name:
056T11D15533
Manufacturer Part Number:
MARATHON MOTORS
