Description

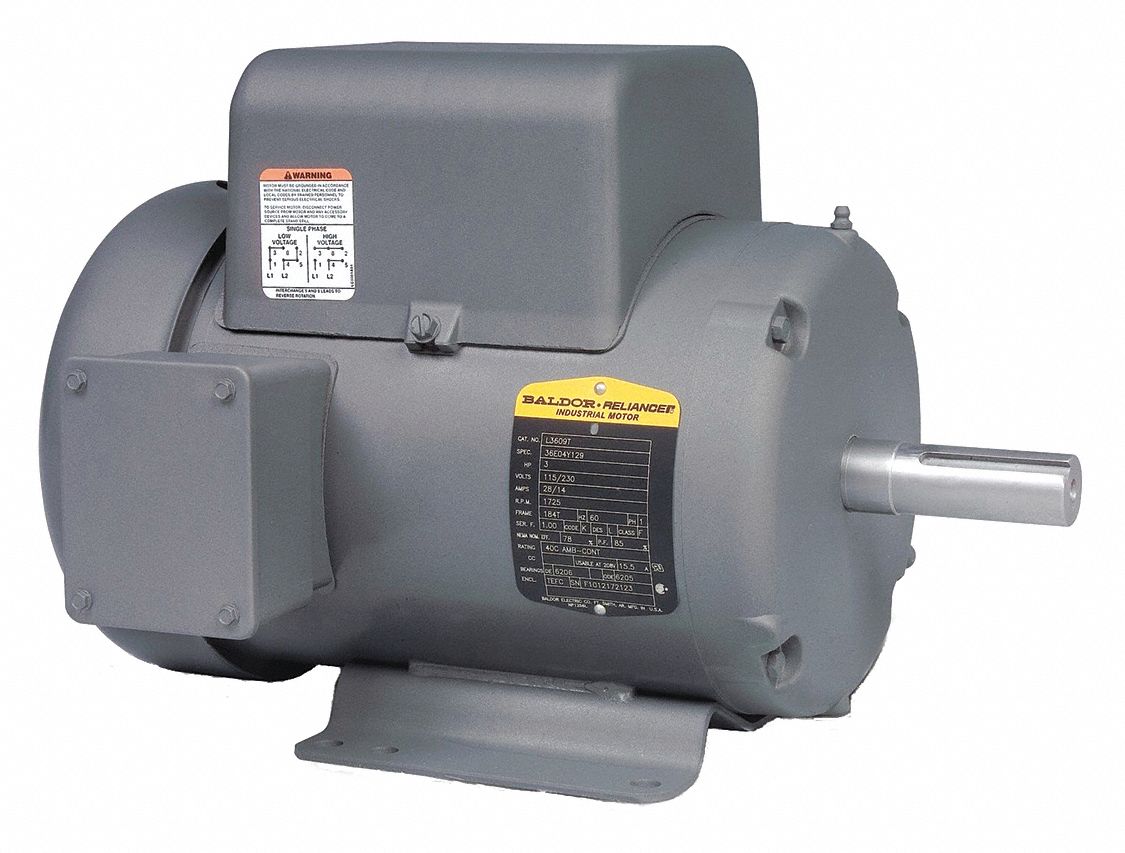

AC Induction Motor Single Phase Motor Design Capacitor-Start/Run 5 HP Nameplate RPM 3 450 No of Speeds 1 Voltage 230V AC Full Load Amps 19.
5 A 184T Frame Hz 60 Hz Motor Service Factor 1 Max Ambient Temp 40 Degrees C Motor Thermal Protection Manual Duty Cycle Continuous Ins.
Class F NEMA Design L Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Inverter Rated No
Features
Extra Information
Processing Time:
2-3 days
