Description

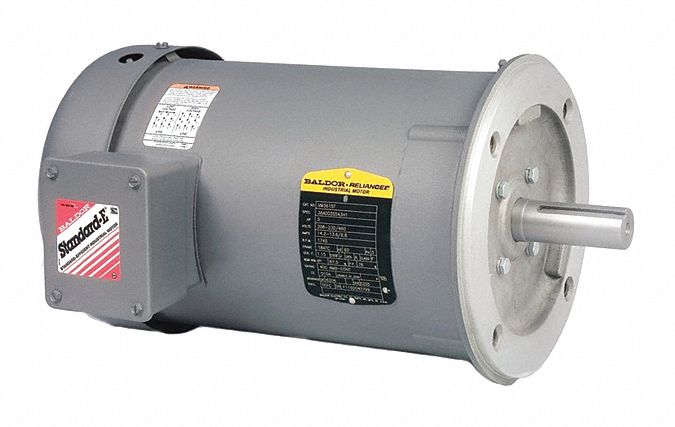

AC Induction Motor Three Phase Motor Design 3-Phase 3/4 HP Nameplate RPM 1 140 No of Speeds 1 Voltage 208V AC 230V AC 460V AC Full Load Amps 1.
5/3/3.
3 A 56C Frame Usable @ 208V Yes Hz 60 Hz Motor Service Factor 1.
15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins.
Class B NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CCW Motor Mounting Type Not Applicable Motor Mounting Position Vertical- Alternate Part Numbers- 58NV82- VM3543
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
US
Manufacturer Name:
VM3543
Manufacturer Part Number:
BALDOR ELECTRIC
