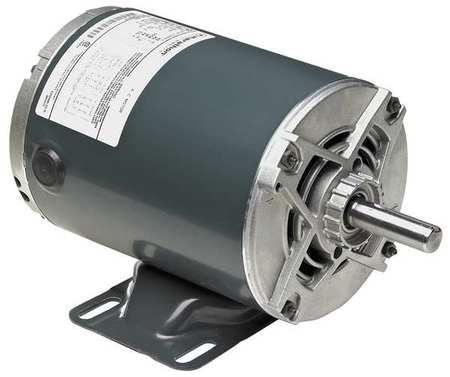

MARATHON 056T17DRR70023A1 - GENERAL PURPOSE MOTOR 3/4 HP 1725 RPM - GENERAL PURPOSE MOTOR 3-PHASE OPEN DRIPPROOF 3/4 1/2 HP NAMEPLATE RPM 1725 56 FRAME VOLTAGE 208-230/460 60/50 HZ 3 PHASE 2.
6-2.
6/1.
3 FULL LOAD AMPS NO OF SPEEDS 1 MOTOR MOUNTING TYPE RIGID BASE MOTOR MOUNTING POSITION HORIZONTAL MOTOR THERMAL PROTECTION AUTO INS.
CLASS B 1.
25 MOTOR SERVICE FACTOR BALL MOTOR BEARINGS MOTOR FRAME MATERIAL ROLLED STEEL MAX AMBIENT TEMP 40 DEGREES C CW/CCW MOTOR SHAFT ROTATION OVERALL LENGTH 12-1/2 IN.
MOTOR SHAFT DESIGN KEYED - EQUAL TO G0600448
Features
Specs
Manufacturer Name:
MARATHON
Manufacturer Part Number:
056T17DRR70023A1
