Description

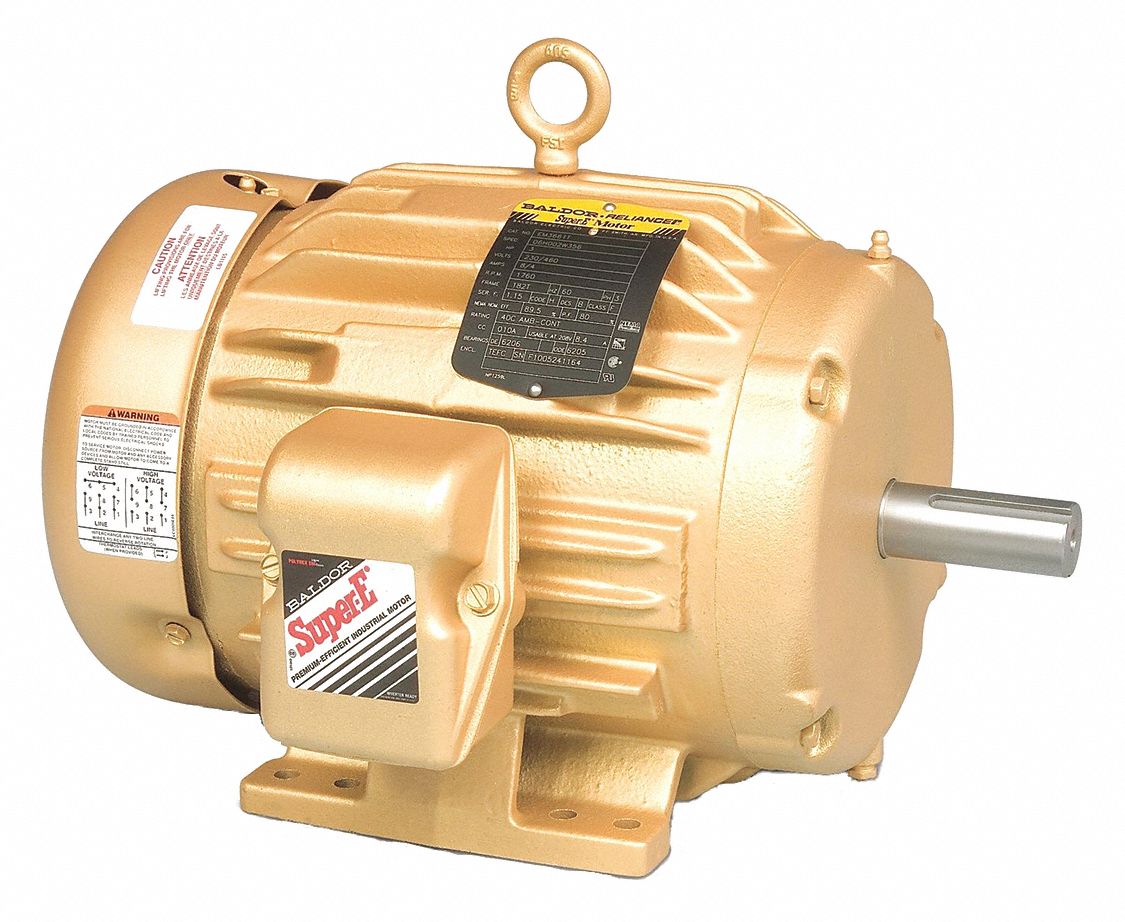

AC Induction Motor Three Phase Motor Design 3-Phase 25 HP Nameplate RPM 1 180 No of Speeds 1 Voltage 230V AC 460V AC Full Load Amps 32/64/7 A 324T Frame Usable @ 208V Yes Hz 60 Hz Motor Service Factor 1.
15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins.
Class F NEMA Design A Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Inverter Rated Yes- Alternate Part Numbers- 58NV10- EM4111T
Features
Specs
Country of Origin:
US
Manufacturer Name:
EM4111T
Manufacturer Part Number:
BALDOR ELECTRIC
