Description

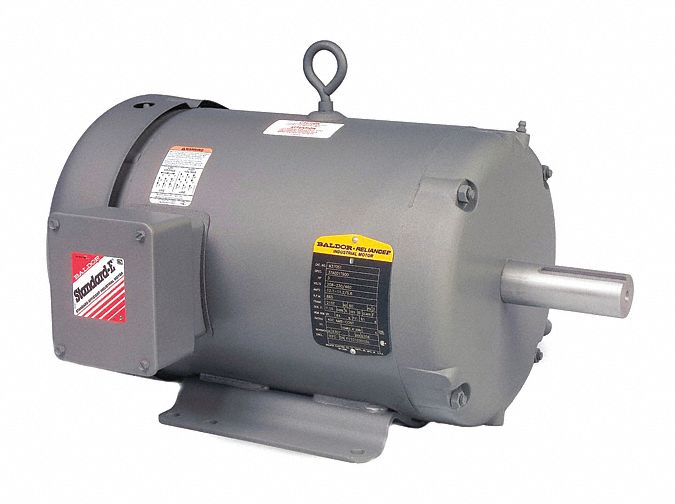

AC Induction Motor Three Phase Motor Design 3-Phase 1/4 HP Nameplate RPM 1 735 No of Speeds 1 Voltage 230V AC 460V AC Full Load Amps 0.
60/1.
1/1.
2 A 48 Frame Usable @ 208V Yes Hz 60 Hz Motor Service Factor 1.
35 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins.
Class B NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal- Alternate Part Numbers- 59VY21- M3454- 59VY21
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
US
Manufacturer Name:
M3454
Manufacturer Part Number:
BALDOR ELECTRIC
