Description

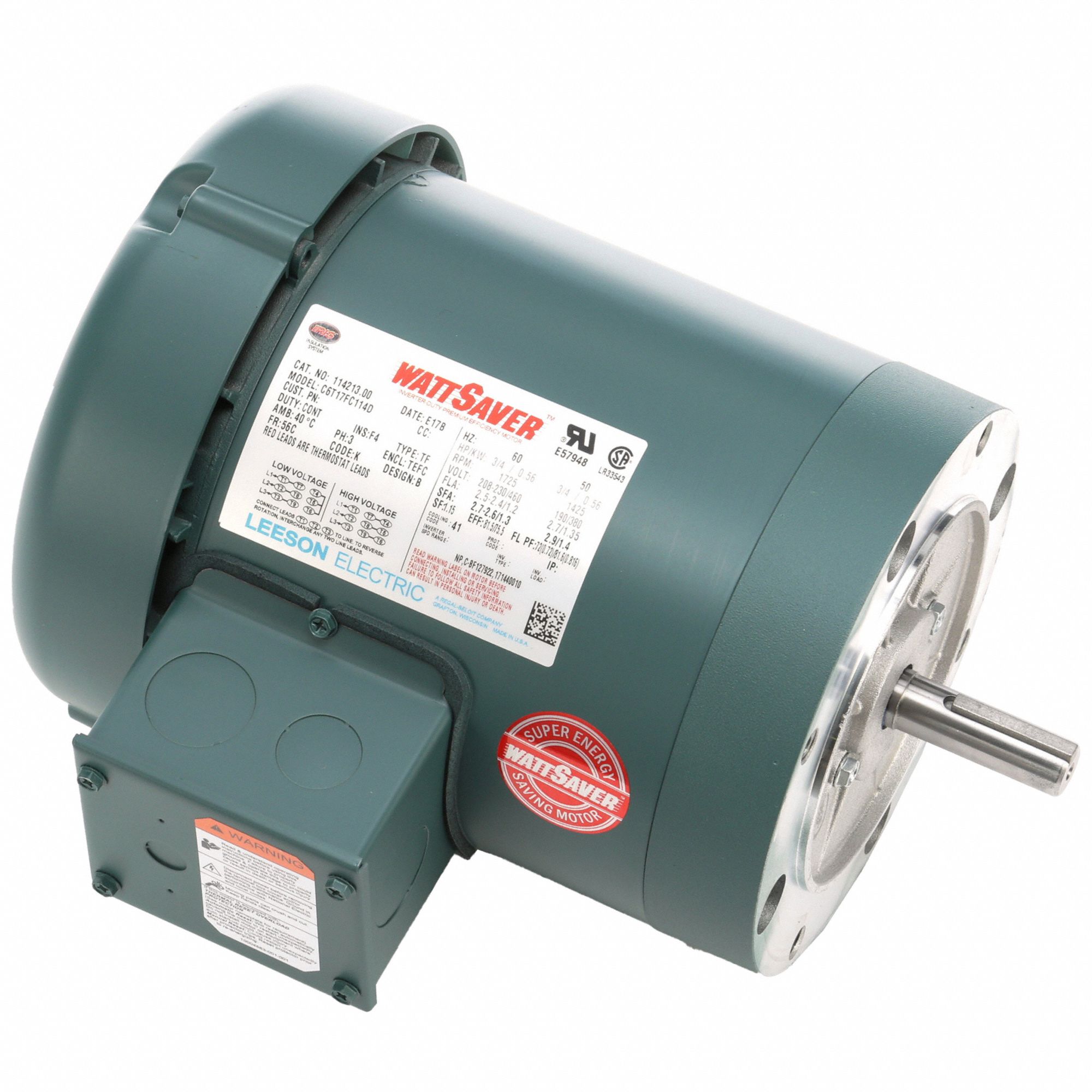

General Purpose Motors Three Phase Motor Design 3-Phase 3/4 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 2.
5-2.
4/1.
2 A 56C Frame Usable @ 208V Yes Hz 60 Hz Motor Service Factor 1.
15 Max Ambient Temp 104 Degrees F Motor Thermal Protection T-Stat Duty Cycle Continuous Ins.
Class F NEMA Design B Motor Enclosure Design Totally Enclosed Air-Over Motor Shaft Rotation Reversible Motor Mounting Type Face Motor Mounting Position Horizontal- Alternate Part Numbers- 798KK3- 11421300
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
US
Manufacturer Name:
114213
Manufacturer Part Number:
LEESON
