Description

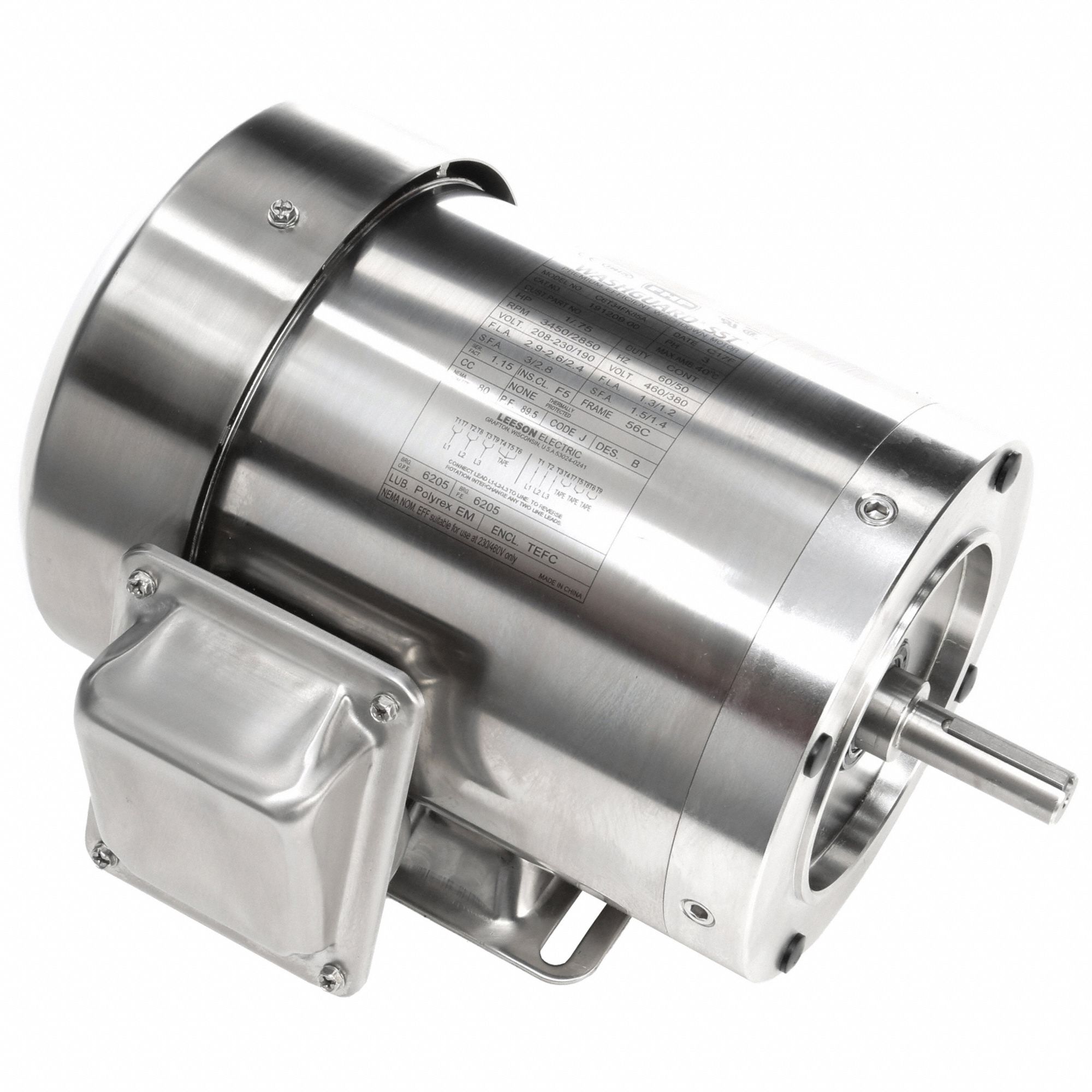

Washdown Motor Three Phase Motor Design 3-Phase 1 HP Nameplate RPM 3 450 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 2.
9 to 2.
6/1.
3 A 56HC Frame Usable @ 208V Yes 60 Hz Motor Service Factor 1.
15 Motor Thermal Protection None Ins.
Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Air-Over Motor Mounting Type Rigid Base Motor Mounting Position Horizontal- Alternate Part Numbers- 798KN8- 19120900
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
CN
Manufacturer Name:
191209
Manufacturer Part Number:
LEESON
