Description
Product Overview

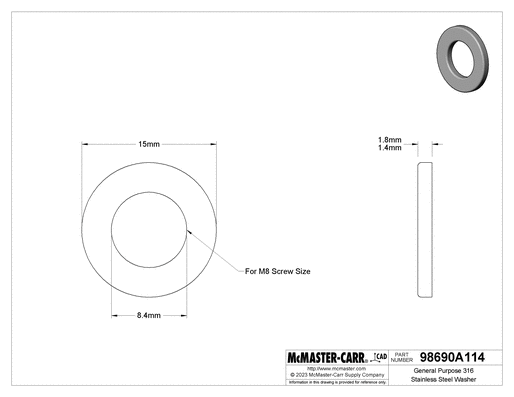

These undersized flat washers are designed to evenly distribute pressure under fasteners with narrow heads, including cheese and socket head screws. Crafted from super corrosion-resistant 316 stainless steel, they are ideal for use in harsh environments where durability is paramount.
Key Features
- Material: 316 Stainless Steel
- For Screw Size: M8
- ID: 8.4 mm
- OD: 15.0 mm
- Thickness: 1.4 mm to 1.8 mm
- Specifications Met: DIN 433, ISO 7092
- Hardness: Rockwell B76
- Performance: Super Corrosion Resistant
- System of Measurement: Metric
- Washer Type: Flat
- Country of Origin: China, Germany, India
- DFARS Compliance: Not Specialty Metals Compliant
- Export Control Classification Number (ECCN): EAR99
- REACH Compliance: Compliant (EC 1907/2006, 242 SVHC)
- RoHS Compliance: Compliant (RoHS 3)
- Schedule B Number: 731822.0000
- U.S.–Mexico–Canada Agreement (USMCA) Qualifying: No
Benefits
- Resistant to degradation in harsh weather and chemical environments.
- Ensures even pressure distribution for enhanced fastener integrity.
- Smaller diameter than standard washers for use in constrained applications.
| Washer Designation | Undersized |
|---|---|
| Material | 316 Stainless Steel |
| For Screw Size | M8 |
| ID | 8.4 mm |
| OD | 15.0 mm |
| Thickness | 1.4 mm to 1.8 mm |
| Specifications Met | DIN 433, ISO 7092 |
| Hardness | Rockwell B76 |
| Performance | Super Corrosion Resistant |
| System of Measurement | Metric |
| Washer Type | Flat |
| Country of Origin | China, Germany, India |
| DFARS Compliance | Not Specialty Metals Compliant |
| Export Control Classification Number (ECCN) | EAR99 |
| REACH Compliance | Compliant (EC 1907/2006, 242 SVHC) |
| RoHS Compliance | Compliant (RoHS 3) |
| Schedule B Number | 731822.0000 |
| U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Features
Specs
Manufacturer Name:
McMaster-Carr
