Description

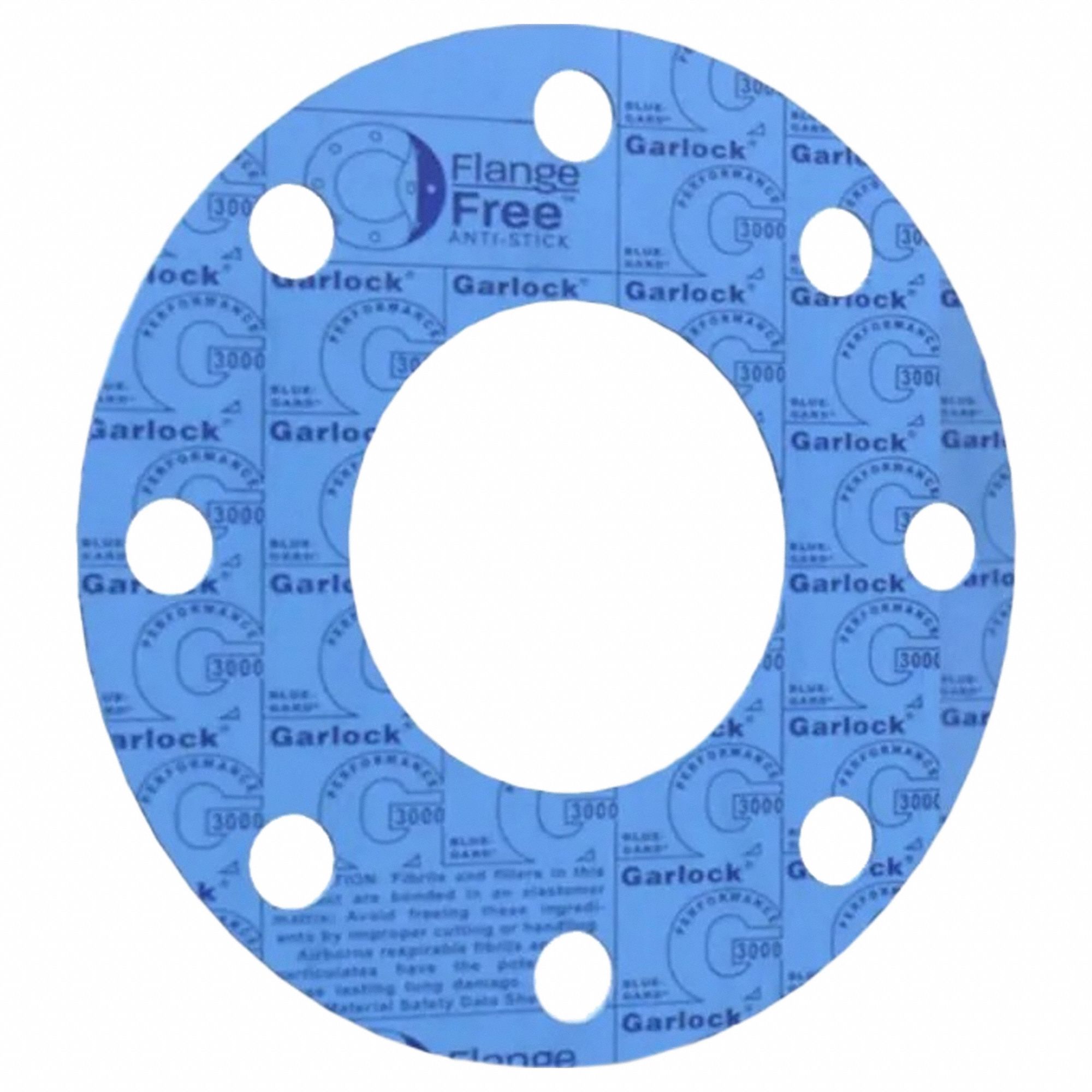

Full Face Flange Gasket Gasket Material Aramid Insert Material None For Pipe Size 5 in For Flange ANSI Class 300 Binder Material Buna-N Color Blue Inside Diameter 5 9/16 in Minimum Operating Temperature -100 Degrees F Maximum Operating Temperature 700 Degrees F Outside Diameter 11 in Thickness 1/8 in Number of Bolt Holes 8 Bolt Hole Diameter 7/8 in Gasket Type Full-Face Gasket Metal Detectable Gasket No Included Fasteners Not Applicable Hardness Not Rated- Alternate Part Numbers- 810MD0- 3000FF03001250500
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
MX
Manufacturer Name:
3000FF-0300-125-0500
Manufacturer Part Number:
GARLOCK
