Product Overview
This product is a high-quality M8 socket head screw made from 316 stainless steel, known for its superior corrosion resistance and durability in chemical and saltwater environments. Ideal for applications requiring strength and reliability, these fully threaded screws follow the dimension standards set by ISO 4762 (previously DIN 912).
Key Features
- Material: 316 Stainless Steel for enhanced corrosion resistance
- Fully threaded with a standard socket head profile
- Metric measurement system (M8, 1.25 mm thread pitch)
- Right hand thread direction and coarse thread spacing
- Tensile strength of 70,000 psi
- Passivated finish for added protection against rust
- Complies with DIN 912 and ISO 4762 specifications
- RoHS 3 and REACH compliant
Benefits
- Exceptional resistance to chemicals and saltwater
- Reliable performance in demanding environments
- Mildly magnetic, providing versatility in various applications
- Industry-standard coarse threads simplify selection process

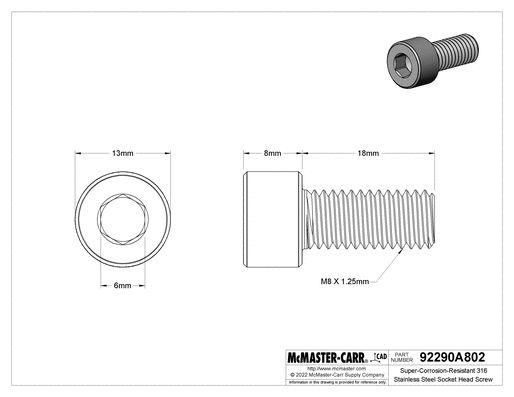

Product Specifications
| Specification | Details |
|---|---|
| Head Type | Socket |
| Socket Head Profile | Standard |
| Drive Style | Hex |
| System of Measurement | Metric |
| Thread Direction | Right Hand |
| Thread Size | M8 |
| Thread Pitch | 1.25 mm |
| Thread Type | Metric |
| Thread Fit | Class 6g |
| Length | 18mm |
| Threading | Fully Threaded |
| Thread Spacing | Coarse |
| Head Diameter | 13mm |
| Head Height | 8mm |
| Drive Size | 6 mm |
| Material | 316 Stainless Steel |
| Finish | Passivated |
| Tensile Strength | 70,000 psi |
| Hardness | Not Rated |
| Specifications Met | DIN 912, ISO 4762 |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
| DFARS | Not Specialty Metals Compliant |
| Country of Origin | Belgium, France, Germany, India, Indonesia, Italy, Japan, Malaysia, Peoples Republic Of China, Philippines, Poland, South Korea, Switzerland, Taiwan, Thailand, or Vietnam |
| Schedule B | 731815.9000 |
| ECCN | EAR99 |
