Description

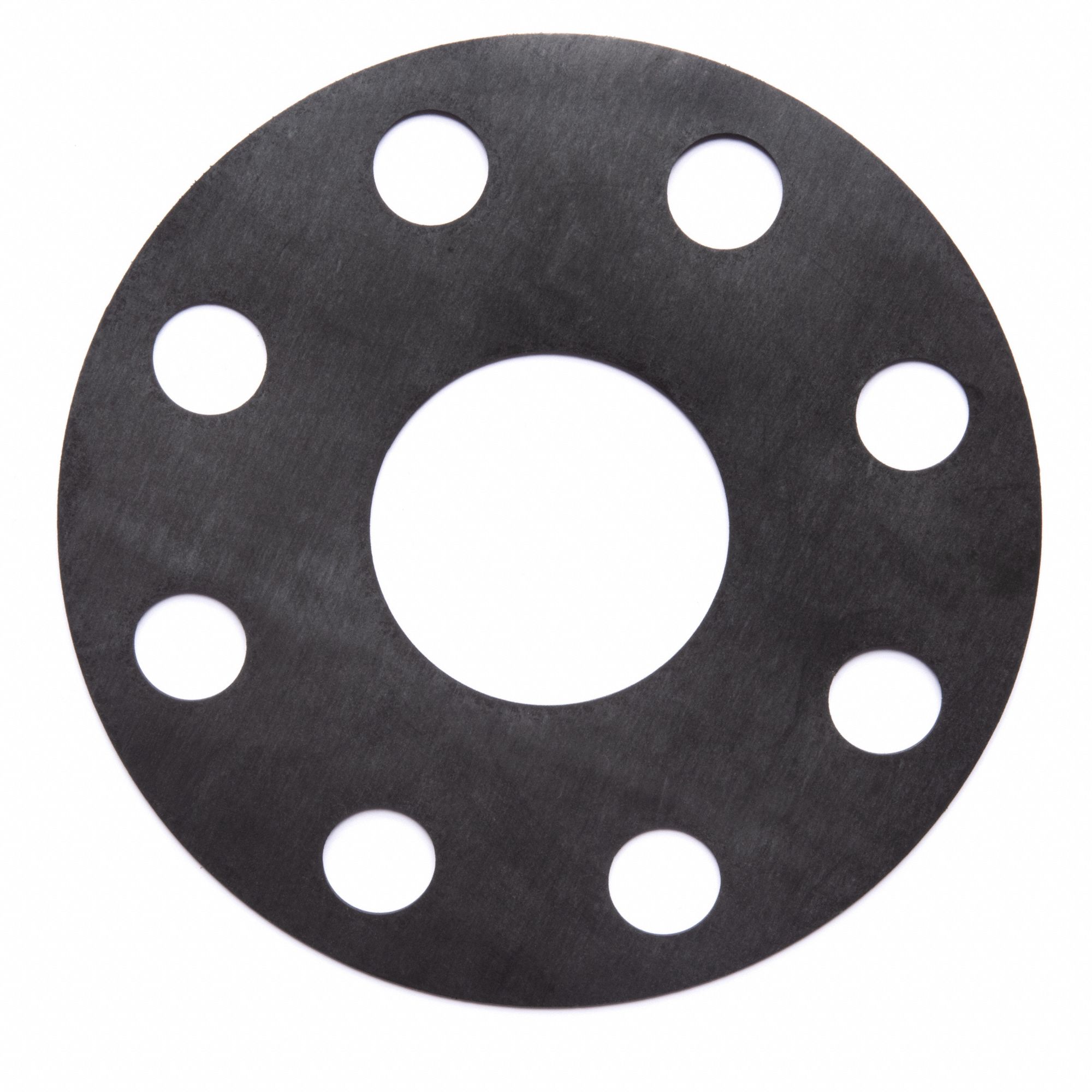

Full Face Flange Gasket Gasket Material FKM Insert Material None For Pipe Size 3 in For Flange ANSI Class 300 Binder Material None Color Black Inside Diameter 3 1/2 in Minimum Operating Temperature -20 Degrees F Maximum Operating Temperature 450 Degrees F Outside Diameter 8 1/4 in Thickness 1/16 in Number of Bolt Holes 8 Bolt Hole Diameter 7/8 in Gasket Type Full-Face Gasket Metal Detectable Gasket No Included Fasteners Not Applicable Hardness Not Rated- Alternate Part Numbers- 742H05- BULKFG460- 742H05
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
CN
Manufacturer Name:
BULK-FG-460
Manufacturer Part Number:
APPROVED VENDOR
