Description

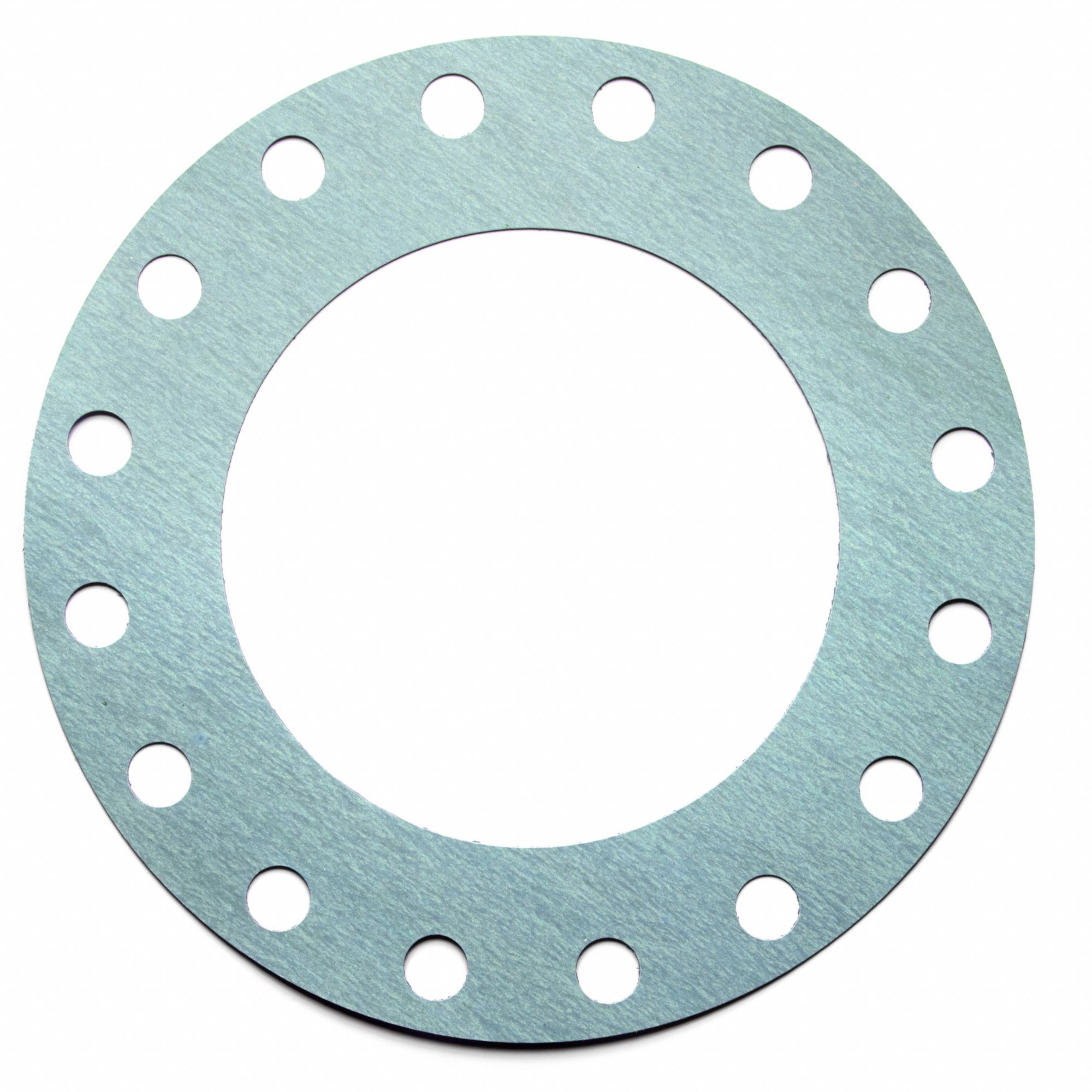

Full Face Flange Gasket Gasket Material Aramid Insert Material None For Pipe Size 16 in For Flange ANSI Class 150 Binder Material Buna-N Color Blue Inside Diameter 16 in Minimum Operating Temperature -100 Degrees F Maximum Operating Temperature 400 Degrees F Outside Diameter 23 1/2 in Thickness 1/16 in Number of Bolt Holes 16 Bolt Hole Diameter 1 1/8 in Gasket Type Full-Face Gasket Metal Detectable Gasket No Included Fasteners Not Applicable Hardness Not Rated
Features
Extra Information
Processing Time:
2-3 days
