Description

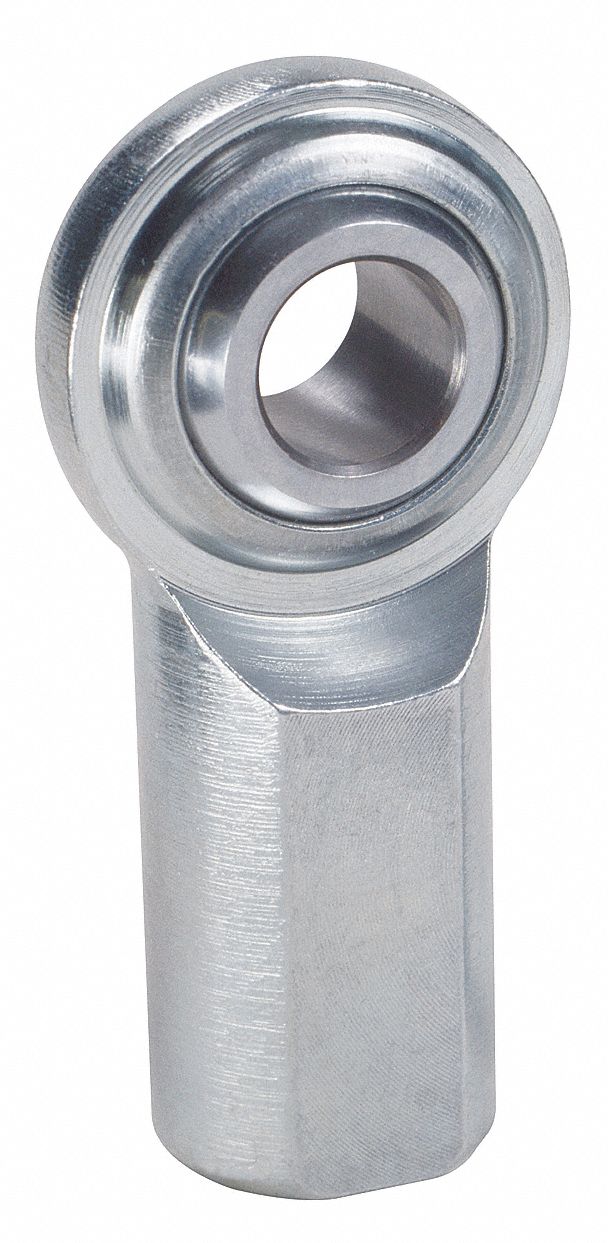

Spherical Rod End System of Measurement Metric Bore Diameter 6 mm Head Outside Diameter 19 mm Head Width 6.
25 mm Shank Thread Length 14 mm Shank Thread Size M6-1.
0 Housing Material Carbon Steel Shank Thread Direction Right Hand Application Light Duty Ball Diameter 12.
7 mm Ball Material Alloy Steel Ball Material Grade 52100 Bore Diameter Tolerance +0.
065/-0.
012 in Housing Material Finish Chrome Plated Inner Ring Width 9 mm Maximum Ball Swivel 23 Degrees Overall Length 39.
5 mm- Alternate Part Numbers- 39N425- MCFR6- 39N425
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
CN
Manufacturer Name:
MCFR6
Manufacturer Part Number:
QA1
