Description

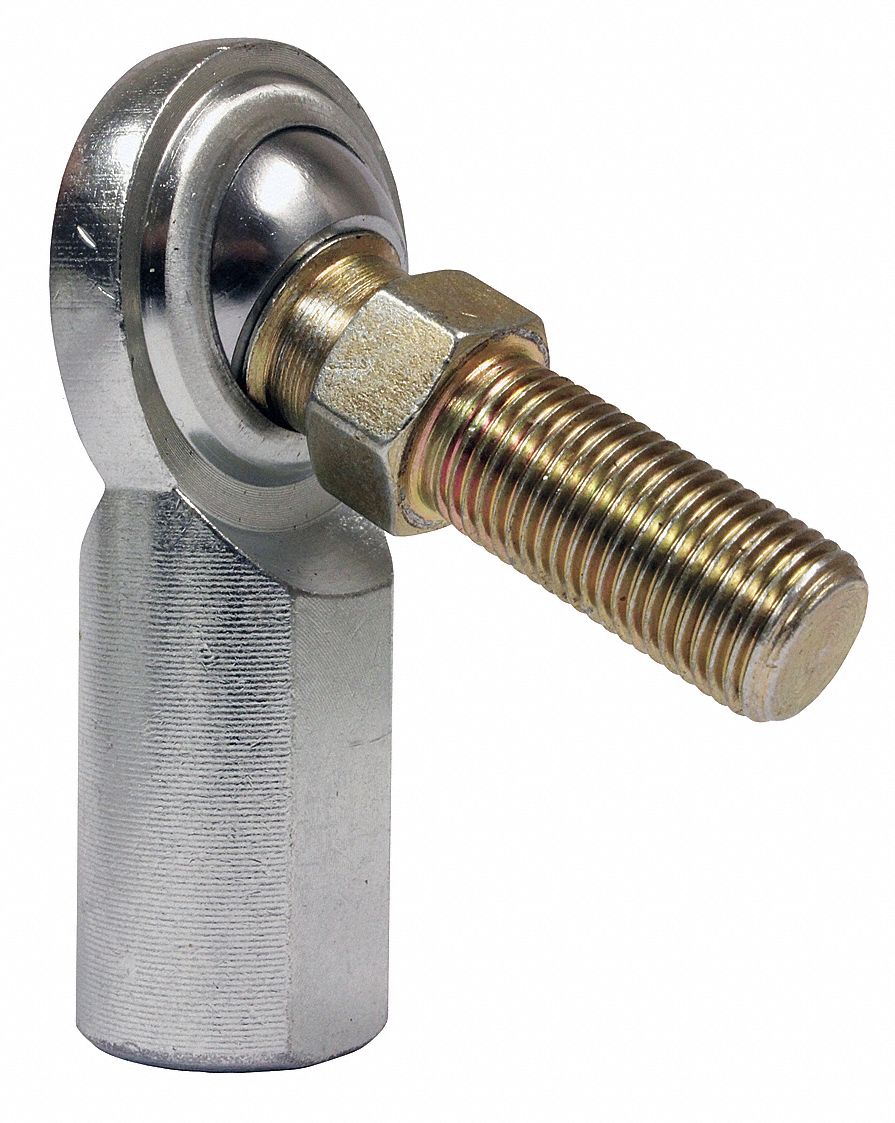

Spherical Rod End System of Measurement Metric Ball Stud Center Length 64.
5 mm Ball Stud Thread Length 29 mm Ball Stud Thread Size M14-2.
0 Bore Diameter 14 mm Head Outside Diameter 34.
75 mm Head Width 12.
25 mm Shank Thread Length 27 mm Shank Thread Size M14-2.
0 Housing Material Carbon Steel Shank Thread Direction Left Hand Application Light Duty Ball Diameter 25.
4 mm Ball Material Alloy Steel Ball Material Grade 52100 Ball Stud Material Carbon Steel- Alternate Part Numbers- 39N462- MCFL14S- 39N462
Features
Specs
Country of Origin:
CN
Manufacturer Name:
MCFL14S
Manufacturer Part Number:
QA1
