Description

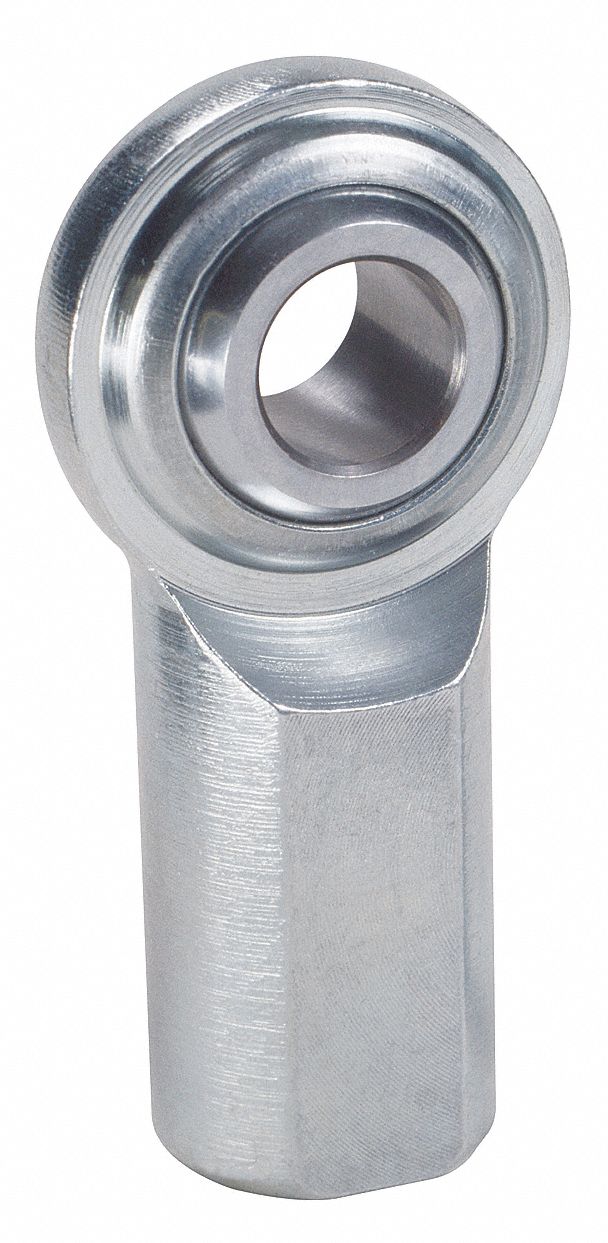

Spherical Rod End System of Measurement Metric Bore Diameter 12 mm Head Outside Diameter 30 mm Head Width 10.
75 mm Shank Thread Length 24 mm Shank Thread Size M12-1.
75 Housing Material Carbon Steel Shank Thread Direction Left Hand Application Light Duty Ball Diameter 22.
23 mm Ball Material Alloy Steel Ball Material Grade 52100 Bore Diameter Tolerance +0.
065/-0.
012 in Housing Material Finish Chrome Plated Inner Ring Width 16 mm Maximum Ball Swivel 27 Degrees Overall Length 65 mm- Alternate Part Numbers- 39N432- MCFL12- 39N432
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
CN
Manufacturer Name:
MCFL12
Manufacturer Part Number:
QA1
