Description

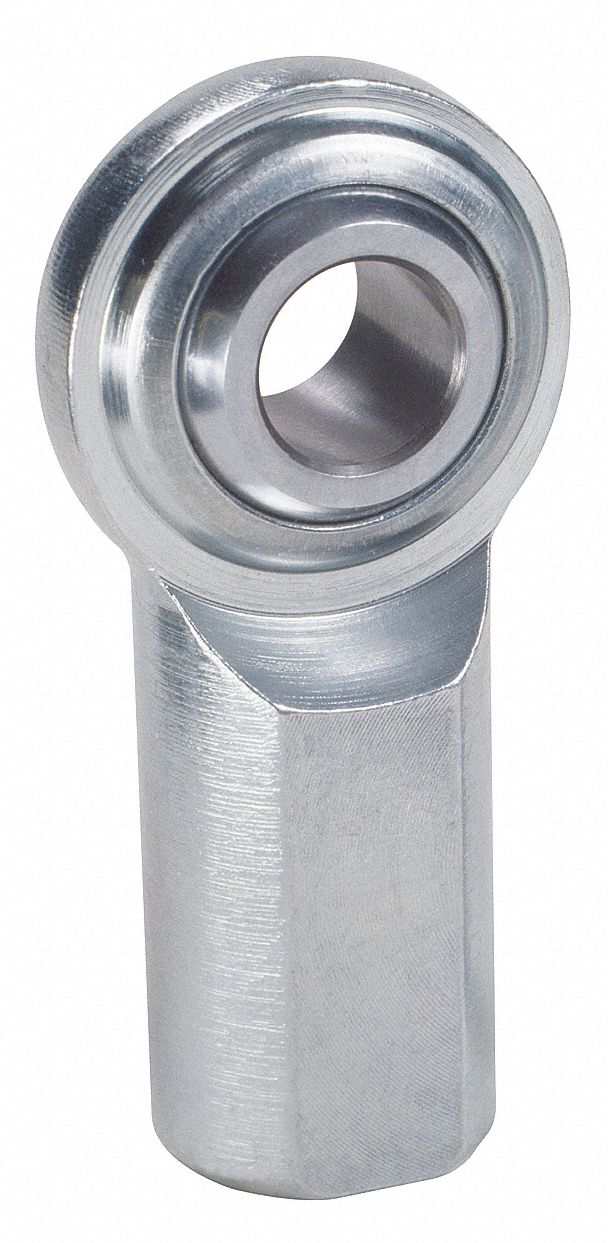

Spherical Rod End System of Measurement Inch Bore Diameter 1/4 in Head Outside Diameter 3/4 in Head Width 0.
25 in Shank Thread Length 5/8 in Shank Thread Size 1/4 In.
-28 Housing Material Carbon Steel Shank Thread Direction Left Hand Application Light Duty Ball Diameter 0.
5 in Ball Material Alloy Steel Ball Material Grade 52100 Bore Diameter Tolerance +0.
0025/-0.
0005 in Housing Material Finish Chrome Plated Inner Ring Width 0.
375 in Maximum Ball Swivel 27 Degrees - Alternate Part Numbers- 20F962- CFL4- 20F962
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
CN
Manufacturer Name:
CFL4
Manufacturer Part Number:
QA1
