Description

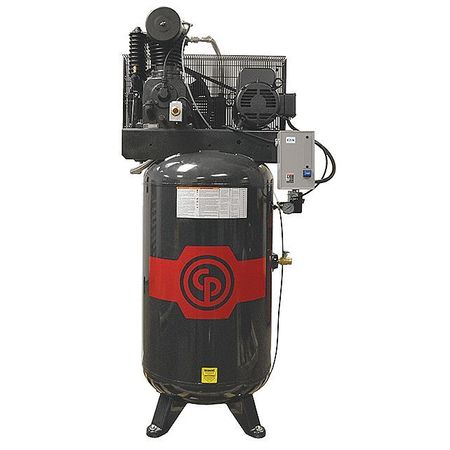

CHICAGO PNEUMATIC RCP-C581V - ELECTRIC AIR COMPRESSOR 2 STAGE 18 CFM - ELECTRIC AIR COMPRESSOR COMPRESSOR TYPE TANK MOUNTED NUMBER OF STAGES 2 LUBRICATION TYPE SPLASH LUBRICATED 5 HP MAX PRESSURE 175 PSI FREE AIR CFM @ MAX PRESSURE 18.
0 VOLTAGE 208-230 1 PHASE 25 AMPS 60 HZ TANK SIZE 80 GAL.
TANK TYPE VERTICAL FULLY PACKAGED ASME TANK YES (F)NPT OUTLET 3/4 IN.
CYLINDER MATERIAL CAST IRON POWDER COATED FINISH ENCLOSURE NEMA 1 CONTROL PRESSURE SWITCH MOTOR TYPE OPEN DRIPPROOF OVERALL LENGTH 35-5/16 IN.
OVERALL WIDTH 24 IN.
- EQUAL TO 36VZ44
Features
Extra Information
Mandatory & Preferred Sources:
- Made in the USA
Specs
Manufacturer Name:
CHICAGO PNEUMATIC
Manufacturer Part Number:
RCP-C581V
