Description

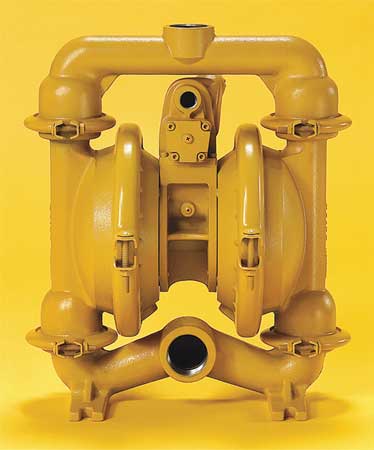

VERSA-MATIC E4AA2R220 - DOUBLE DIAPHRAGM PUMP ALUMINUM 70 GPM - DOUBLE DIAPHRAGM PUMP OPERATION TYPE AIR OPERATED VALVE TYPE BALL BODY MATERIAL ALUMINUM INLET/OUTLET SIZE 1-1/2 IN / 1-1/4 IN.
CONNECTION STYLE NPT AIR INLET SIZE 1/2 IN FNPT MAX FLOW GPM 70 GPM MAX OPERATING PRESSURE 125 PSI MAX TEMP 180 DEGREES F DIAPHRAGM MATERIAL BUNA N BALL MATERIAL BUNA N CHECK SEAT MATERIAL BUNA N MAX DIA SOLIDS 3/16 IN.
MANIFOLD CONNECTION MULTIPORT LENGTH 11-1/2 IN.
WIDTH 14-1/4 IN.
HEIGHT 18 IN.
SELF-PRIMING DRY 15 FT.
- EQUAL TO G1193141
Features
Extra Information
Mandatory & Preferred Sources:
- Made in the USA
Specs
Manufacturer Name:
VERSA-MATIC
Manufacturer Part Number:
E4AA2R220
