Description

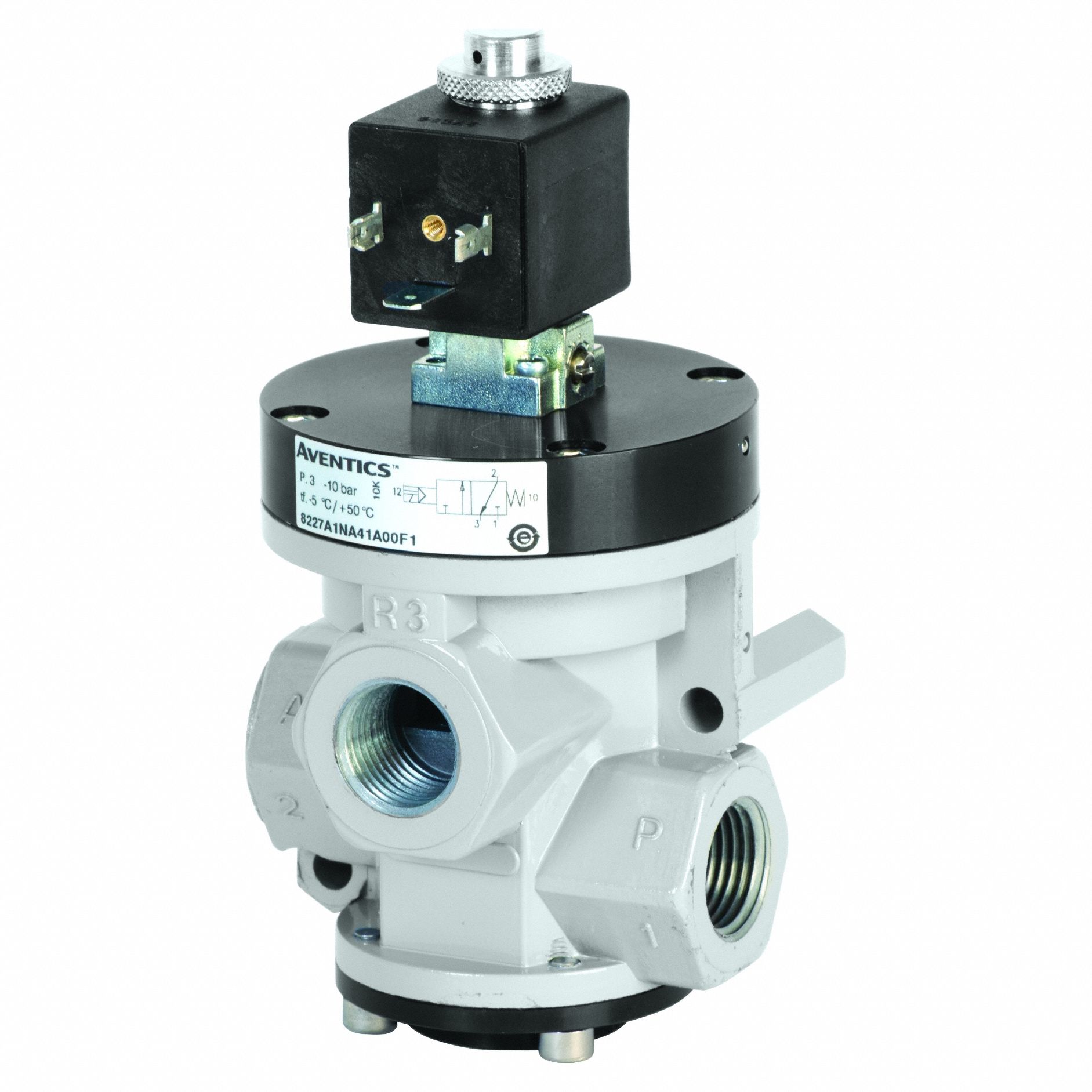

Directional Control Poppet Valve Valve Ways and Positions 3-Way/2-Position Voltage 24VDC Valve Actuator / Return Solenoid / Spring Pipe Size 3/4 in Operational Pressure Range 36 to 145 psig NEMA Classification NEMA 4 Normally Closed Pilot Port Size 3/4 in NPT DIN Plug Electrical Connections Shifting Technology Solenoid/Pilot Power Consumption 5 W Ambient Temp Range 23 Degrees to 113 Degrees F Overall Height 6 5/64 in Overall Length 2 61/64 in Overall Width 2 61/64 in- Alternate Part Numbers- 807UV4- 8227A1NA51A00F1
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
IT
Manufacturer Name:
8227A1NA51A00F1
Manufacturer Part Number:
AVENTICS
