Description
Product Overview

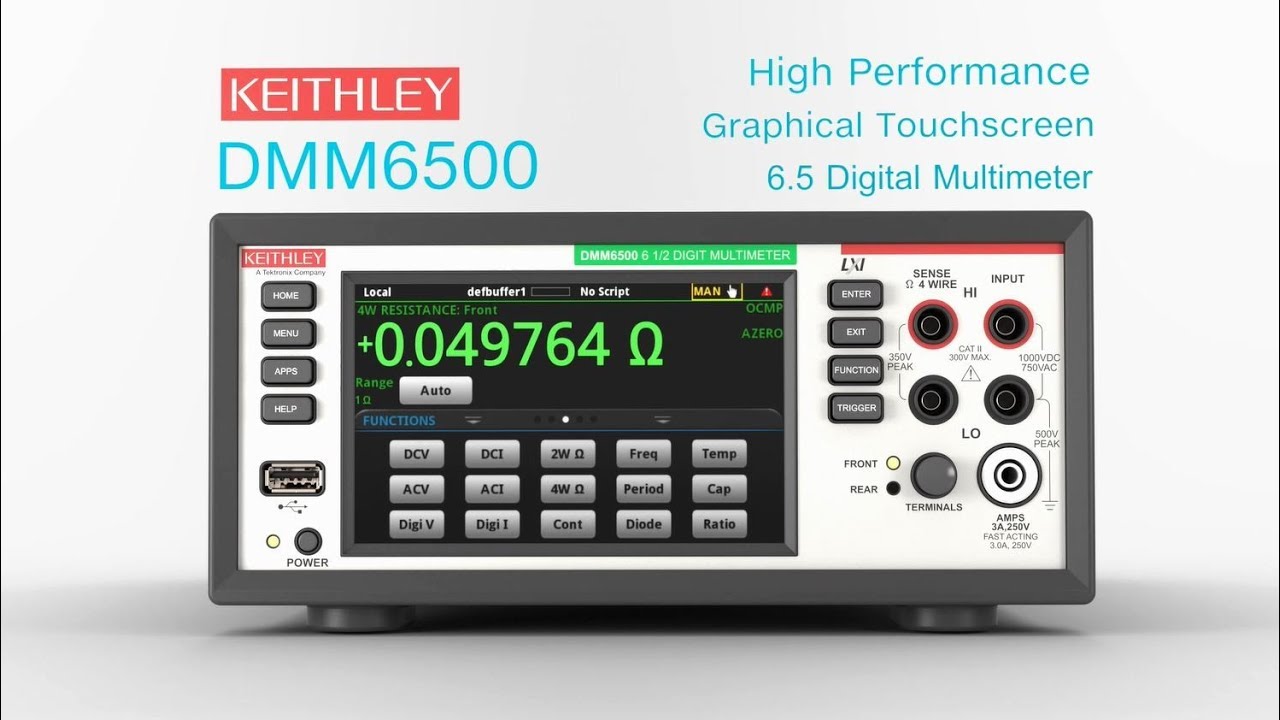

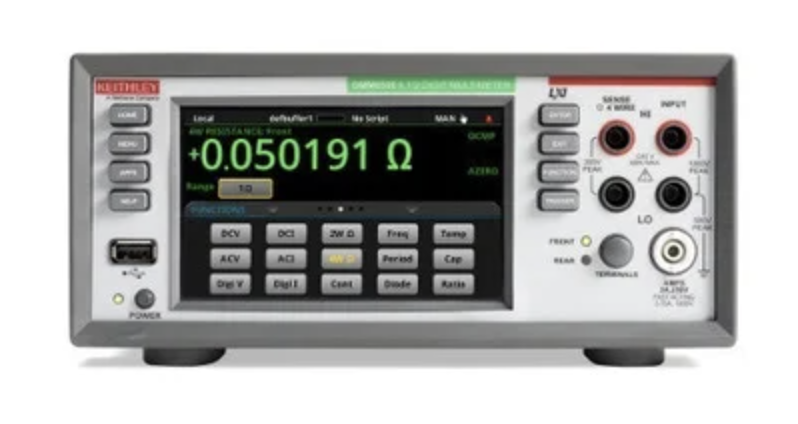

The Keithley Instruments 6-1/2 Digit Bench/System Digital Multimeter with Scanning is a high-precision measurement tool designed for both laboratory and field use. With its extensive range of measurement capabilities, it provides accurate and reliable readings for various electrical parameters.
Key Features
- 6 1/2 digit resolution for precise measurements
- Voltage range: 100 mVAC to 750 VAC, 100 mVDC to 1 kVDC
- Resistance range: 1 Ohm to 100 MOhms
- Capacitance range: 1000 pF to 100 µF
- True RMS measurement for accurate AC voltage and current measurements
- Auto ranging feature for convenience
- Data hold function to store measurements
- USB Type A to Type B cable for connectivity
Benefits
- High accuracy and precision enhance reliability in testing
- Versatile measurement ranges cater to various applications
- User-friendly design with automatic ranging simplifies operations
- True RMS capability ensures accurate readings for non-linear loads
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Manufacturer | Keithley Instruments, Inc. |
| Product Category | Digital Multimeters |
| RoHS | Compliant |
| Type | Bench |
| Number of Digits | 6 1/2 Digit |
| Voltage Range | 100 mVAC to 750 VAC, 100 mVDC to 1 kVDC |
| Resistance Range | 1 Ohm to 100 MOhms |
| Capacitance Range | 1000 pF to 100 µF |
| Frequency | 50 Hz to 60 Hz |
| Ranging | Auto |
| True RMS | Yes |
| Data Hold | Yes |
| Dimensions (L x W x H) | 387.4 mm x 224 mm x 107.2 mm |
| Unit Weight | 10 lbs |
| Factory Pack Quantity | 1 |
| Subcategory | Test Equipment |
Features
Specs
Country of Origin:
US
Manufacturer Name:
Keithley Instruments
Manufacturer Part Number:
DMM6500
