Description

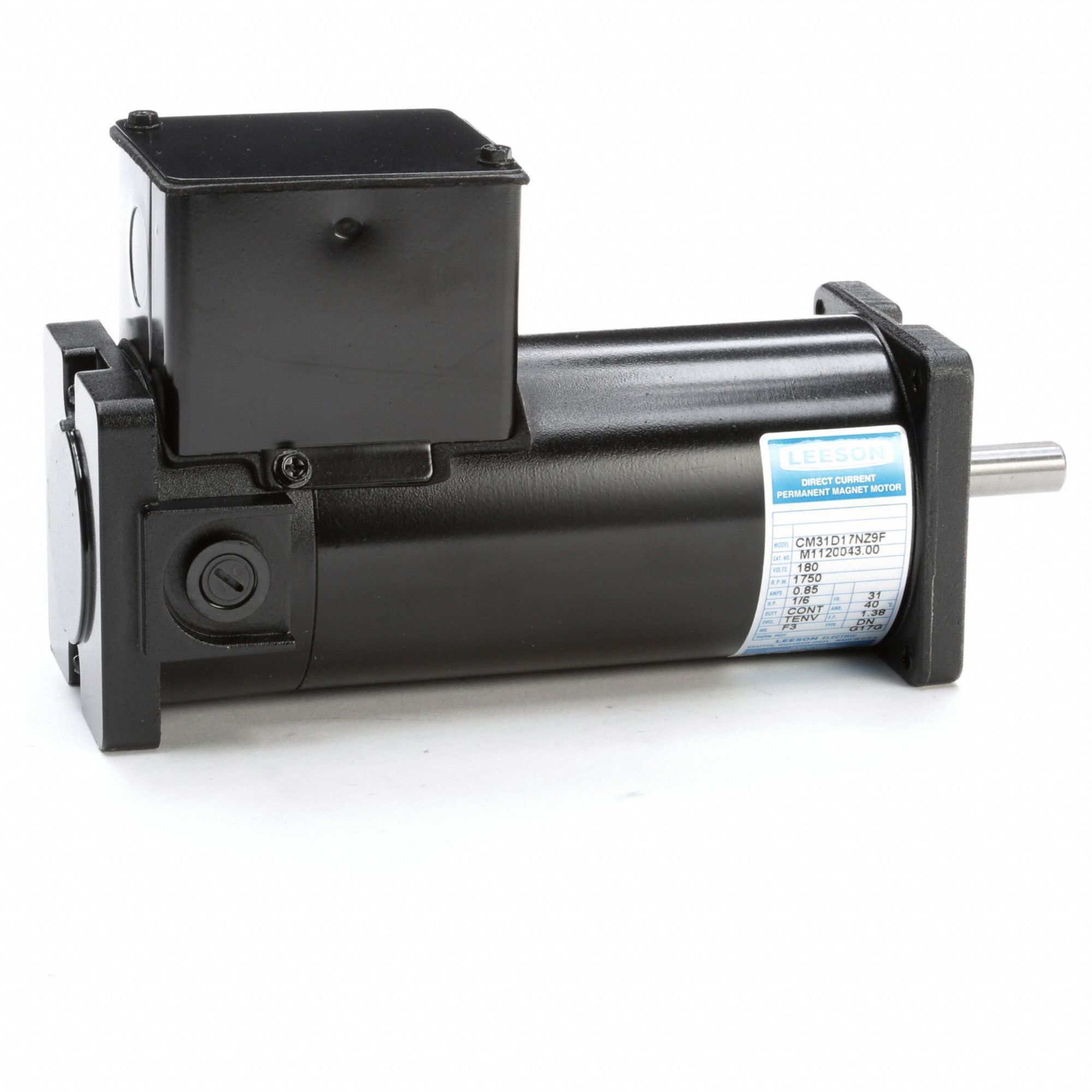

DC Permanent Magnet Motor Not Applicable Phase Motor Design Permanent Magnet DC 1/6 HP Nameplate RPM 1 750 Voltage 180V DC 0.
85 A Full Load Amps 31 Frame Motor Service Factor 1 Motor Thermal Protection No Protection Ins.
Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous Motor Enclosure Design Totally Enclosed Nonventilated Motor Mounting Type Face/Base Shaft Dia 1/2 in Motor Bearings Ball Shaft Length 1 1/2 in Brush Type External Overall Length 9 7/16 in- Alternate Part Numbers- 805YD4- M112004300
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
US
Manufacturer Name:
M1120043.00
Manufacturer Part Number:
LEESON
