Description

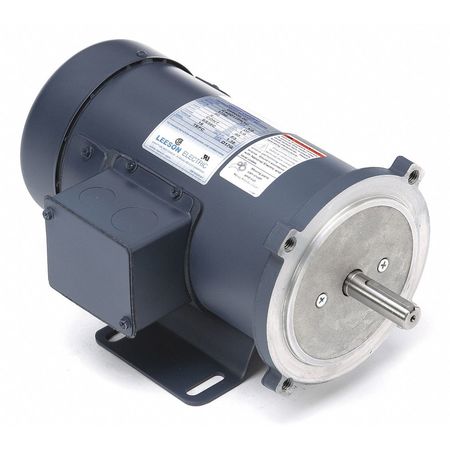

LEESON 098000.
00 - DC PERMANENT MAGNET MOTOR, 1/2 HP, 1,750 NAMEPLATE RPM, 56C FRAME, FACE/BASE MOUNTING, 90V DC - DC PERMANENT MAGNET MOTOR, MOTOR DESIGN PERMANENT MAGNET DC, 1/2 HP, NAMEPLATE RPM 1,750, VOLTAGE 90V DC, 5.
0 A FULL LOAD AMPS, 56C FRAME, FULL LOAD TORQUE 18 IN-LB, MOTOR SERVICE FACTOR 1, MOTOR THERMAL PROTECTION NONE, INS.
CLASS F, MAX.
AMBIENT TEMP.
40 DEGREES C, MOTOR SHAFT ROTATION CW/CCW, DUTY CYCLE CONTINUOUS, MOTOR ENCLOSURE DESIGN TOTALLY ENCLOSED FAN-COOLED, MOTOR MOUNTING TYPE FACE/BASE, REMOVABLE BASE YES, SHAFT DIA.
5/8 IN, MOTOR BEARINGS BALL, SHAFT LENGTH 1 7/8 IN - EQUAL TO G4608759
Features
Extra Information
Mandatory & Preferred Sources:
- Made in the USA
Specs
Manufacturer Name:
LEESON
Manufacturer Part Number:
098000.00
