Description

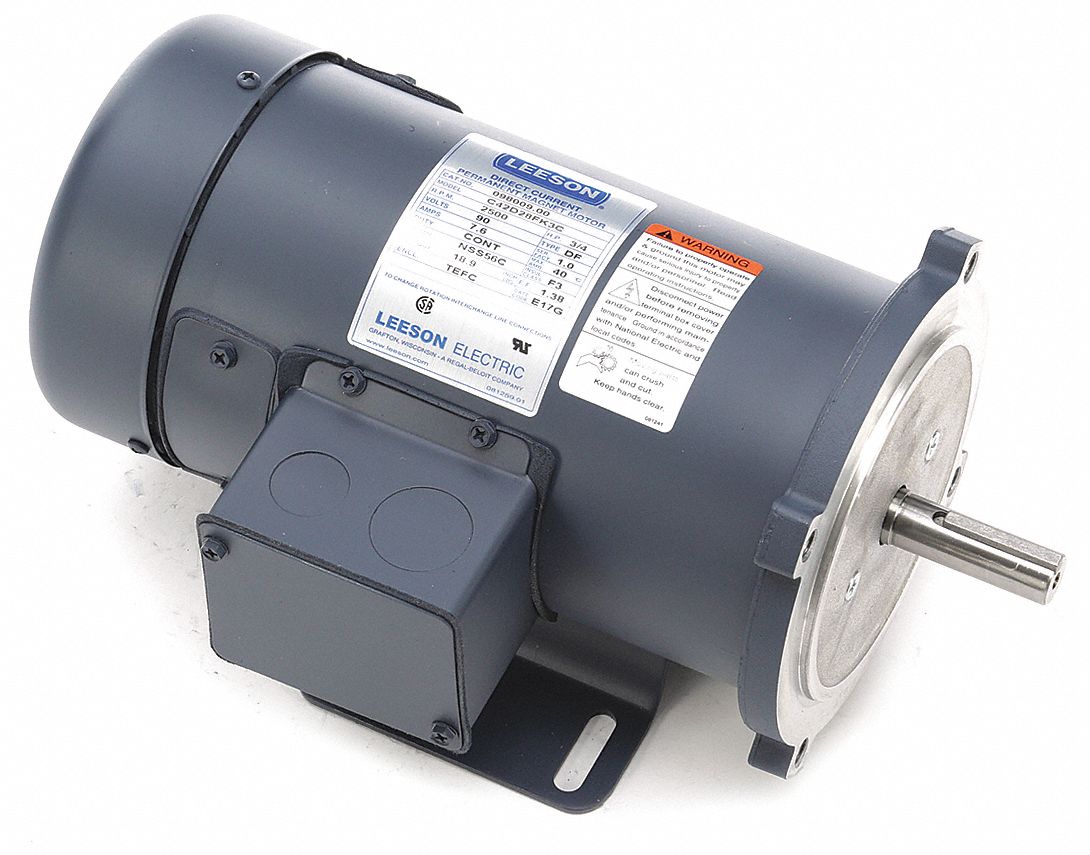

DC Permanent Magnet Motor Motor Design Permanent Magnet DC 3/4 HP Nameplate RPM 2 500 Voltage 90V DC 7.
6 A Full Load Amps 56C Frame Full Load Torque 18.
9 in-lb Motor Service Factor 1 Motor Thermal Protection None Ins.
Class F Max Ambient Temp 40 Degrees C Motor Shaft Rotation CW/CCW Duty Cycle Continuous Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Face/Base Removable Base Yes Shaft Dia 5/8 in Motor Bearings Ball Shaft Length 1 7/8 in
Features
Extra Information
Processing Time:
2-3 days
