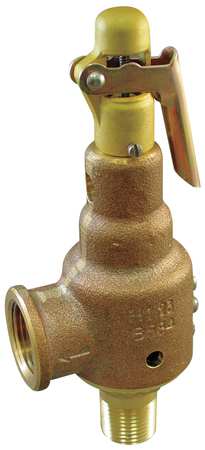

KUNKLE 6010EDE01-AM0050 - D4477 SAFETY RELIEF VALVE 3/4 X 1 IN 50 PSI - D4477 SAFETY RELIEF VALVE BODY MATERIAL BRONZE INLET TYPE MNPT OUTLET TYPE FNPT INLET SIZE 3/4 IN.
OUTLET SIZE 1 IN.
FACTORY SET PRESSURE 50 PSI PRESSURE RANGE 3 TO 250 PSI DISC MATERIAL B21 ALLOY 485 OVERALL HEIGHT 7-1/2 IN.
APPLICATION STEAM BOILER AND GENERATORS PRESSURE REDUCING STATIONS ETC OVERALL LENGTH 3-1/2 IN.
SEAT MATERIAL EPR SPRING MATERIAL STAINLESS STEEL TEMP RANGE -60 DEGREES TO 406 DEGREES F TEST LEVER YES - EQUAL TO 5NKX9
Features
Extra Information
Mandatory & Preferred Sources:
- Made in the USA
Specs
Manufacturer Name:
KUNKLE
Manufacturer Part Number:
6010EDE01-AM0050
