Description

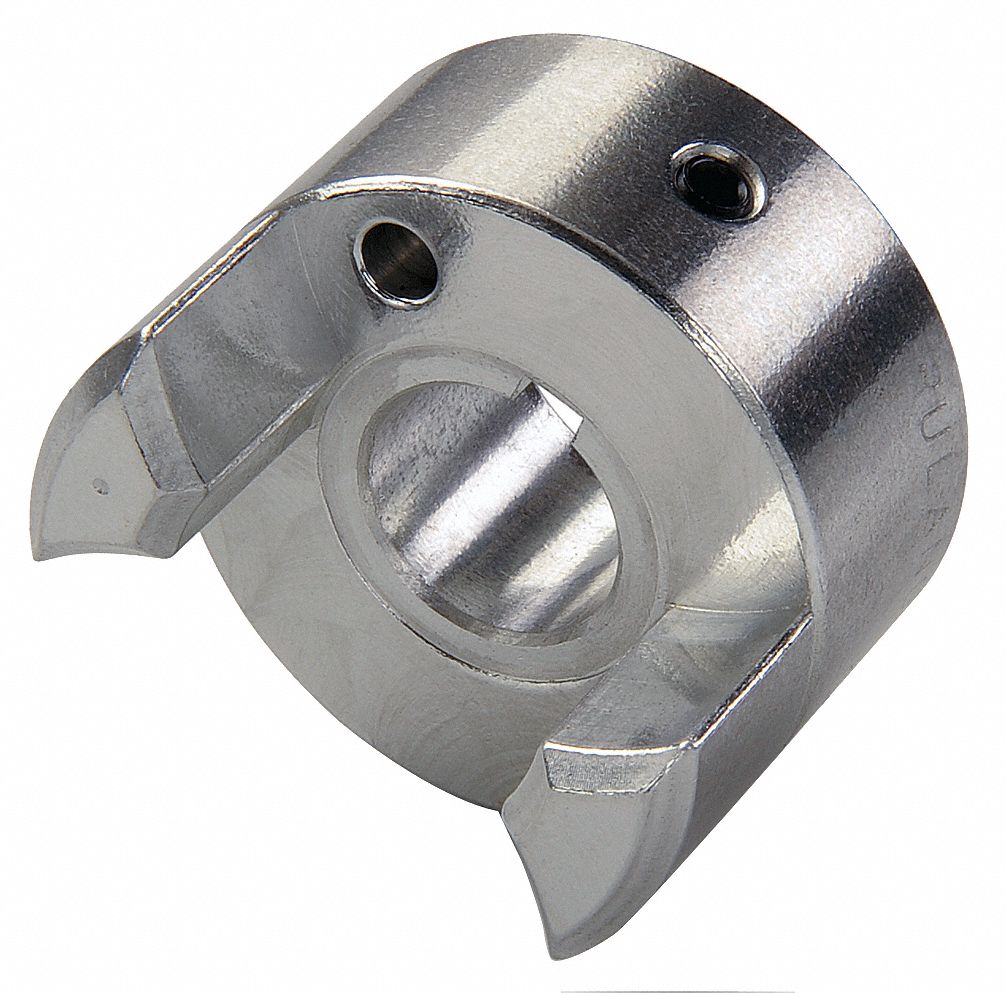

Jaw Coupling Hub Coupling Size MJS25 Outside Diameter 25.
4 mm Coupling Overall Length 35.
3 mm System of Measurement Metric Hub Material Aluminum Maximum Speed 8 000 RPM Keyway Depth 1 mm Keyway Width 2 mm Bore Diameter 8 mm Shaft Locking Type Set Screw Bore Type Round Bore with Keyway Jaw Profile Curved Screw Thread Size M4 Bore Tolerance +0.
05/-0.
00 mm Fail Safe Yes Shaft Tolerance +0.
000/-0.
013 mm Full Bearing Support Required Yes Hub Diameter 25.
4 mm
Features
Extra Information
Processing Time:
2-3 days
