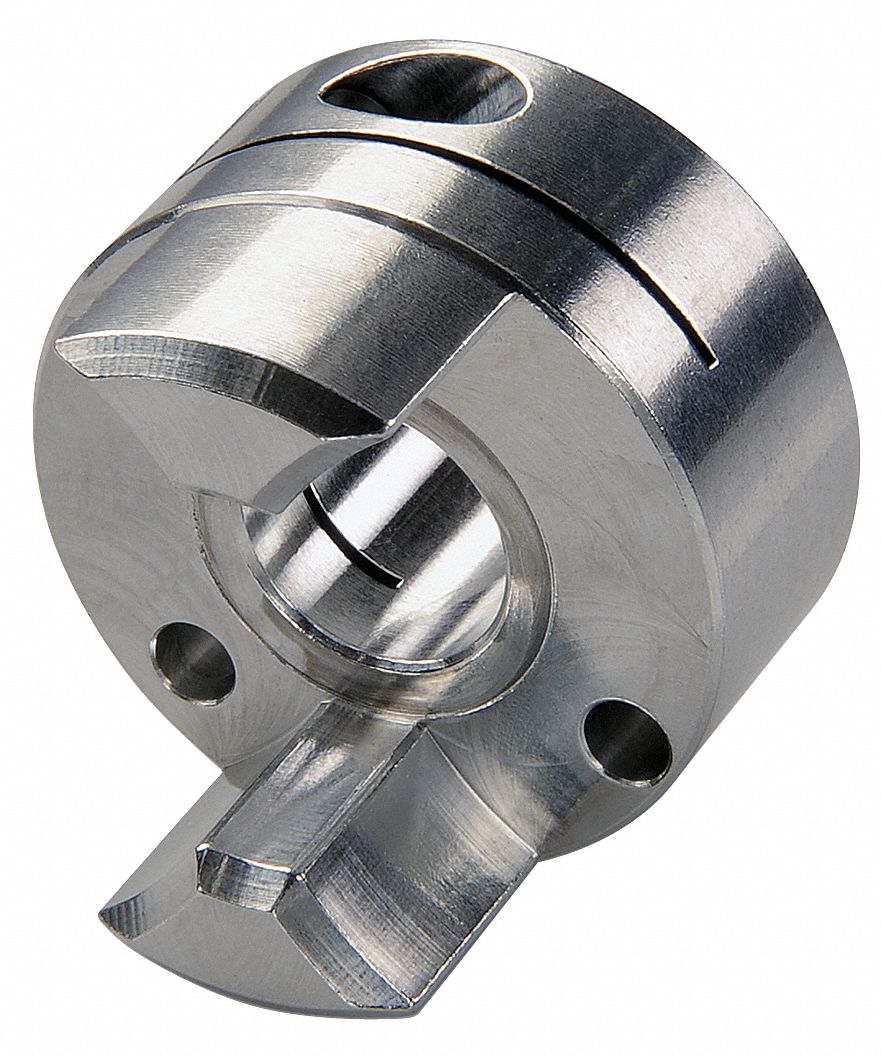

Jaw Coupling Hub Coupling Size MJC25 Outside Diameter 25.
4 mm Coupling Overall Length 35.
4 mm System of Measurement Metric Hub Material Aluminum Maximum Speed 8 000 RPM Keyway Depth Not Applicable Keyway Width Not Applicable Bore Diameter 7 mm Shaft Locking Type Clamp On Bore Type Round Bore Jaw Profile Curved Screw Thread Size M3 Bore Tolerance +0.
05/-0.
00 mm Fail Safe Yes Shaft Tolerance +0.
000/-0.
013 mm Full Bearing Support Required Yes Hub Diameter 25.
4 mm
