Description

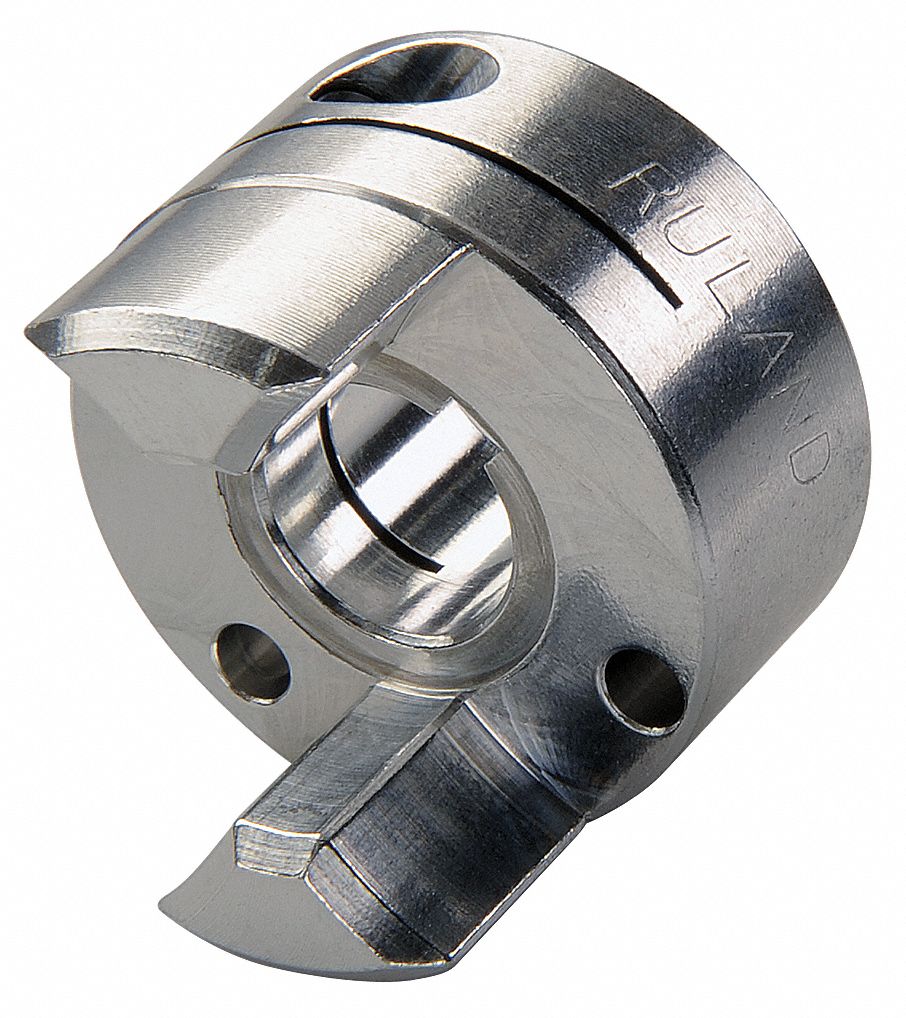

Jaw Coupling Hub Coupling Size MJC33 Outside Diameter 33.
3 mm Coupling Overall Length 44.
5 mm System of Measurement Metric Hub Material Aluminum Maximum Speed 8 000 RPM Keyway Depth 1.
8 mm Keyway Width 4 mm Bore Diameter 11 mm Shaft Locking Type Clamp On Bore Type Round Bore with Keyway Jaw Profile Curved Screw Thread Size M3 Bore Tolerance +0.
05/-0.
00 mm Fail Safe Yes Shaft Tolerance +0.
000/-0.
013 mm Full Bearing Support Required Yes Hub Diameter 33.
3 mm
Features
Extra Information
Processing Time:
2-3 days
