Description
A test set primarily designed for use in making examinations of a countermeasures set. Excludes TEST SET, COUNTERMEASURES DISPENSING SET.
| Characteristic | Specifications |
|---|---|
| TEST TYPE FOR WHICH DESIGNED | AMPLITUDE AND DURATION OF CURRENTABSENCE OF STRAY VOLTAGE |
| INCLOSURE FEATURE | SINGLE ITEM W/HOUSING |
| SPECIAL FEATURES | TESTER TS04485 |

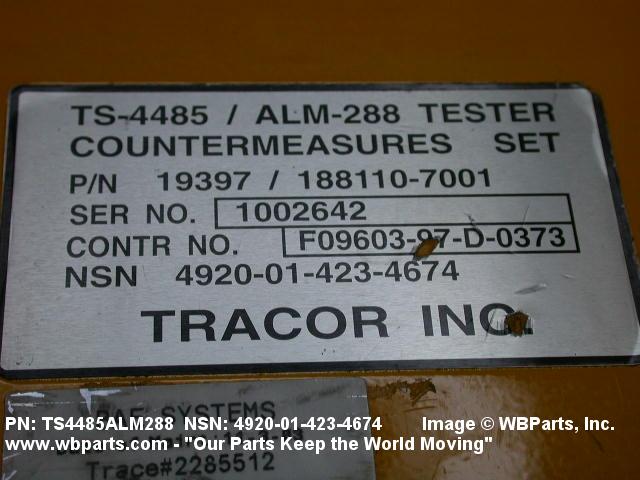

| III END ITEM IDENTIFICATION | TS-4485, ALM-228 |

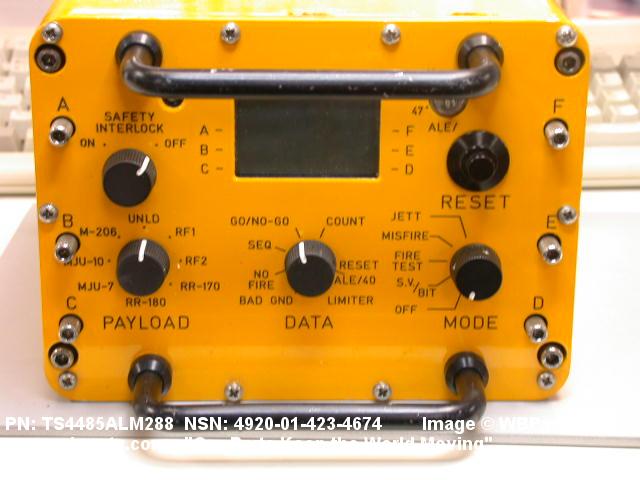

| III FUNCTIONAL DESCRIPTION | MEASURES AMPLITUDE AND DURATION OF CURRENT BEING SUPPLIED TO THE FIRINGPINS OF AN/ALE-40, AN/ALE-45, AND AN/ALE-47 COUNTERMEASURES DISPENSING SYSTEMS. ALSO VERIFIES THE ABSENCE OF STRAYVOLTAGE PRIOR TO THE LOADING OF MUNITIONS |
| III REFERENCE DATA AND LITERATURE | DD FORM 61 |
| MANUFACTURERS CODE | 19397 |
| DESIGN CONTROL REFERENCE | 188110-7001 |
