Product Overview

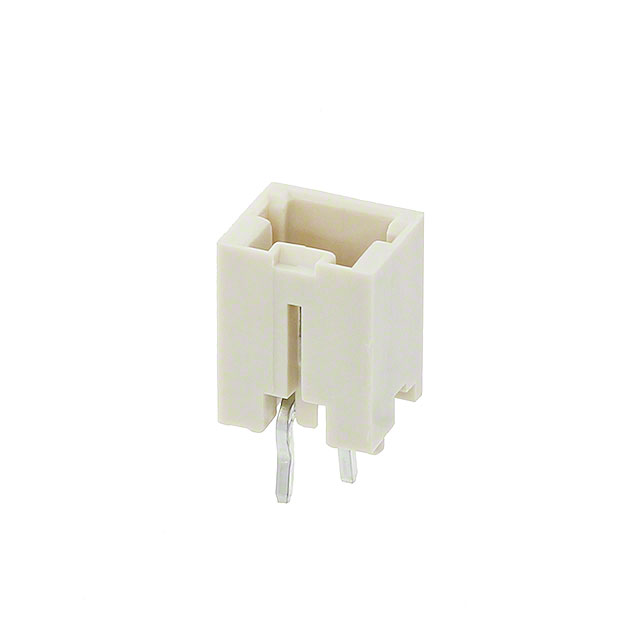

The Connector Header Through Hole with 2 positions and a pitch of 0.059" (1.50mm) is designed for reliable interconnect solutions in various applications. Manufactured by TE Connectivity AMP Connectors, this component is versatile and supports a range of configurations for enhanced connectivity.
Key Features
- 2 Positions for secure connections
- Pitch of 0.059" (1.50mm) for compact designs
- Through Hole mounting for easy integration in PCB applications
- Male pin contacts for effective electrical connections
- Available in bulk packaging for economical sourcing
- Shrouded design for enhanced protection and alignment
- Operating temperature range of -30°C to 105°C
Benefits
- Reliable performance in varying conditions
- Simplicity in assembly with a robust design
- Ideal for general-purpose applications
- UL94 V-0 rated material for safety assurance
| Specification | Details |
|---|---|
| Category | Connectors, Interconnects |
| Mfr | TE Connectivity AMP Connectors |
| Series | Mini CT |
| Part Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Pitch - Mating | 0.059" (1.50mm) |
| Mounting Type | Through Hole |
| Termination | Kinked Pin, Solder |
| Current Rating (Amps) | Varies by Wire Gauge |
| Voltage Rating | 50VAC |
| Operating Temperature | -30°C ~ 105°C |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Contact Material | Brass |
| Contact Finish - Mating | Tin |
| Insulation Height | 0.272" (6.91mm) |
| Applications | General Purpose |
Features
Specs
Country of Origin:
EA
Manufacturer Name:
TE Connectivity AMP Connectors
Item Number:
292207-2
Manufacturer Part Number:
A98681-ND
