Product Overview

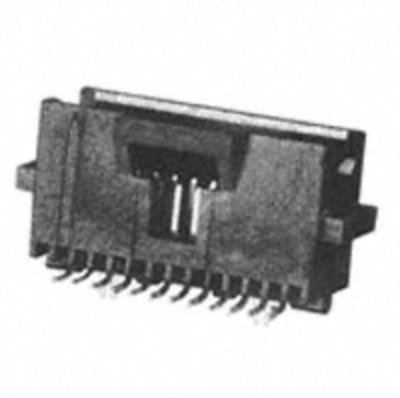

The Connector Header Surface Mount features a 10-position layout with a pitch of 0.050" (1.27mm). Designed for efficient surface mounting, it suits various applications from automotive to telecommunications, providing reliable connectivity in compact spaces.
Key Features
- 10 Positions for versatile connectivity
- Surface Mount design for easy integration
- Shrouded - 4 Wall for added protection
- Operating Temperature range: -65°C to 105°C
- Gold-mate contact finish for superior conductivity
- UL94 V-0 rated for material flammability safety
- Suitable for Board to Board or Cable connections
Benefits
- Enhanced durability and reliability in varied environments
- Compact design optimizes board space
- Easy solder termination for quick assembly
- Wide application range across industries
| Specification | Details |
|---|---|
| Category | Connectors, Interconnects |
| Mfr | TE Connectivity AMP Connectors |
| Series | AMPMODU System 50 |
| Packaging | Tube |
| Part Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | 0.125" (3.18mm) |
| Insulation Height | 0.435" (11.05mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Operating Temperature | -65°C - 105°C |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
Features
Specs
Country of Origin:
US
Manufacturer Name:
TE Connectivity
Manufacturer Part Number:
5-104549-1
