Report item
Description

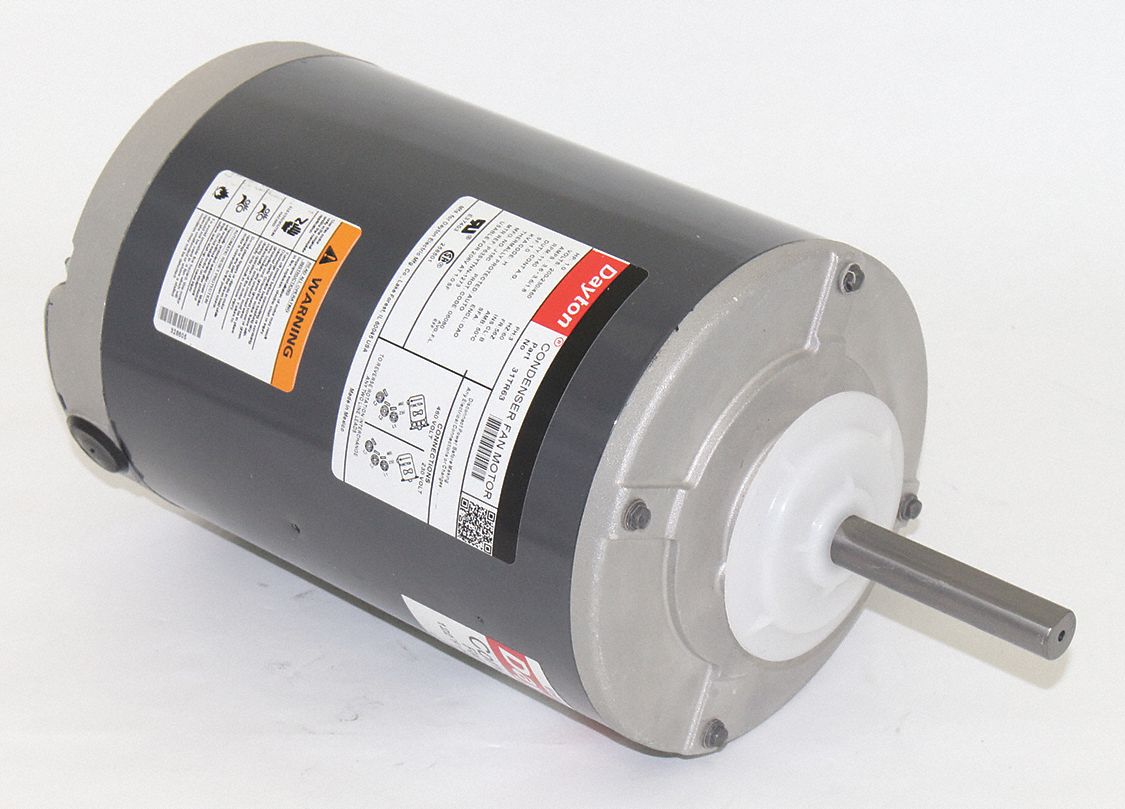

Condenser Fan Motor Three Phase Motor Design 3-Phase 1 HP Nameplate RPM 1 140 No of Speeds 1 Voltage 200-230/460V AC 3.
6-3.
6/1.
8 A Full Load Amps 56Z Frame 60 Hz Hz Motor Service Factor 1 Motor Thermal Protection Auto Ins.
Class B Duty Cycle Continuous Max Ambient Temp 50 Degrees C Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Air-Over Motor Mounting Type Band Inverter Rated Yes Motor Mounting Position Horizontal or Vertical Shaft Up Shaft Length 3 7/16 in
Features
Extra Information
Processing Time:
2-3 days
Reviews
