Description

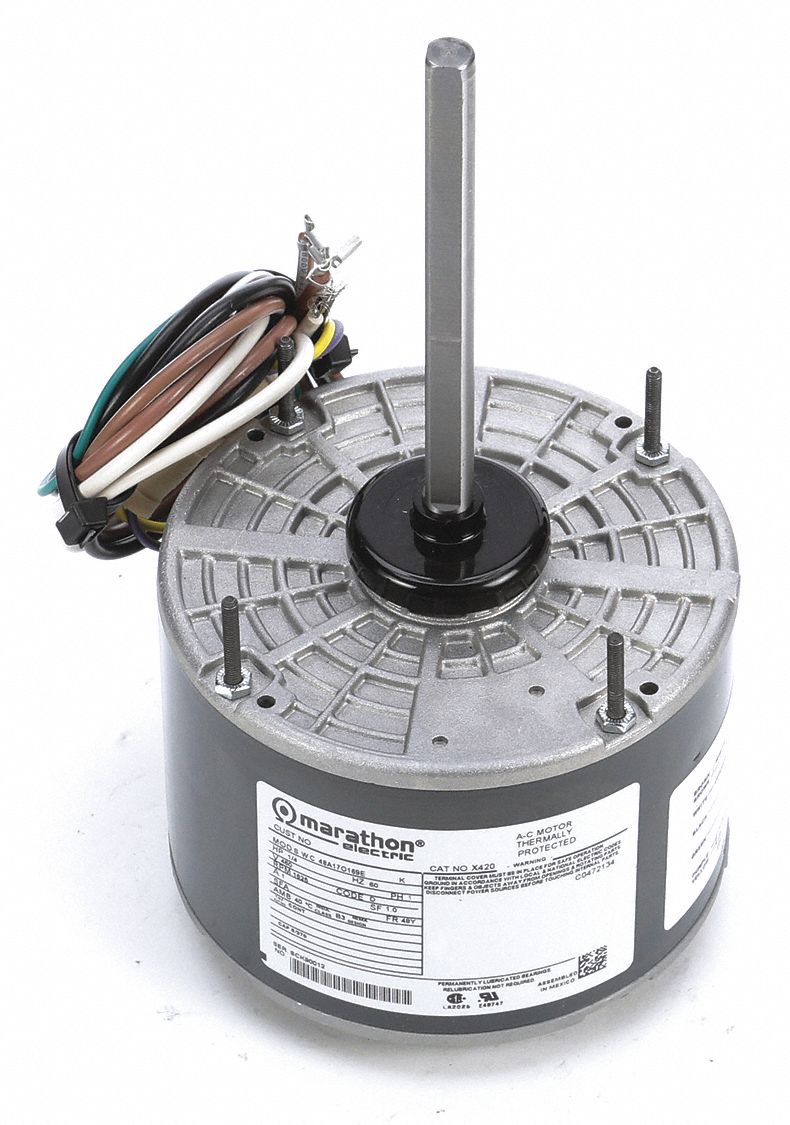

Condenser Fan Motor Single Phase Motor Design Permanent Split Capacitor 1/4 HP Nameplate RPM 1 625 No of Speeds 1 Voltage 460V AC 1.
0 A Full Load Amps 48Y Frame Output Watts 190 W 60 Hz Hz Usable @ 208V No Usable @ 200V No Motor Service Factor 1 Motor Thermal Protection Auto Ins.
Class B Duty Cycle Continuous Max Ambient Temp 40 Degrees C Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Air-Over Motor Mounting Type Stud Motor Frame Material Steel
