Description

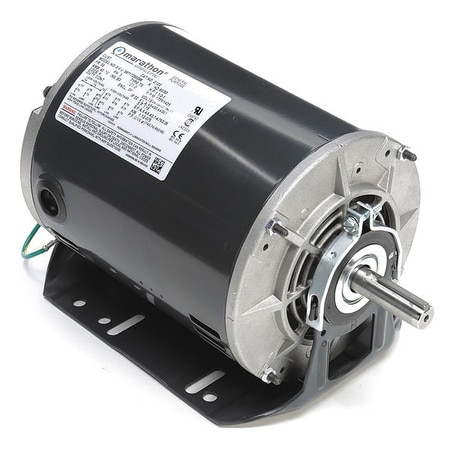

MARATHON 056T17D5329 - CONDENSER FAN MOTOR 1-1/2 HP 56 FRAME - BELT DRIVE MOTOR 3-PHASE 1-1/2 HP NAMEPLATE RPM 1725 VOLTAGE 208-230/460 3 PHASE FRAME 56 OPEN DRIPPROOF FULL LOAD AMPS 4.
8-4.
8/2.
4 60/50 HZ CRADLE BASE MOTOR MOUNTING TYPE MOTOR MOUNTING POSITION HORIZONTAL MOTOR THERMAL PROTECTION NONE INS.
CLASS B MOTOR SERVICE FACTOR 1.
15 BALL MOTOR BEARINGS MAX AMBIENT TEMP 40 DEGREES C MOTOR SHAFT ROTATION CW/CCW OVERALL LENGTH 11-3/8 IN.
SHAFT DIA 5/8 IN.
SHAFT LENGTH 1-15/16 IN.
- EQUAL TO G7345873
Features
Specs
Manufacturer Name:
MARATHON
Manufacturer Part Number:
056T17D5329
