Description

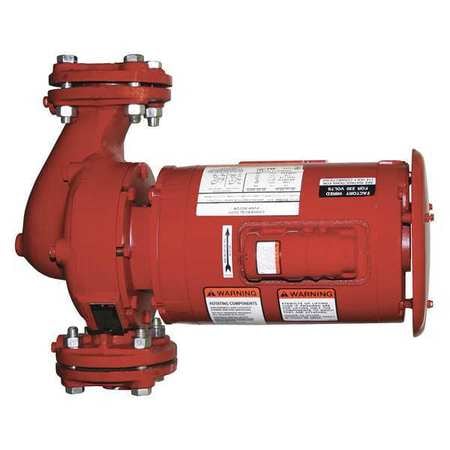

BELL & GOSSETT E9009T - CIRCULATOR PUMP 1/2HP CLOSD 1-1/2 OUTLET - CIRCULATOR PUMP MOTOR ENCLOSURE ODP HOUSING MATERIAL BRONZE FITTED 1/2 HP 3 PHASE VOLTAGE 208 TO 230/460 2.
0 TO 2.
1/1.
0 AMPS 60 HZ INLET (IN.
) 1-1/2 OUTLET (IN.
) 1-1/2 MAX PRESSURE (PSI) 175 MAX GPM @ PSI 97 @ 9 MIN GPM @ PSI 26 MOTOR RPM 1725 MOTOR TYPE 56J CONTINUOUS DUTY IMPELLER MATERIAL ASTM IMPELLER TYPE CLOSED DIFFUSER MATERIAL CAST IRON SEAL MATERIAL EPR CARBON SILICON CARBIDE SEAL TYPE MECHANICAL SHAFT MATERIAL STAINLESS STEEL BEARING TYPE DOUBLE BALL - EQUAL TO 34TK13
Features
Extra Information
Mandatory & Preferred Sources:
- Made in the USA
Specs
Manufacturer Name:
BELL & GOSSETT
Manufacturer Part Number:
E9009T
