Description

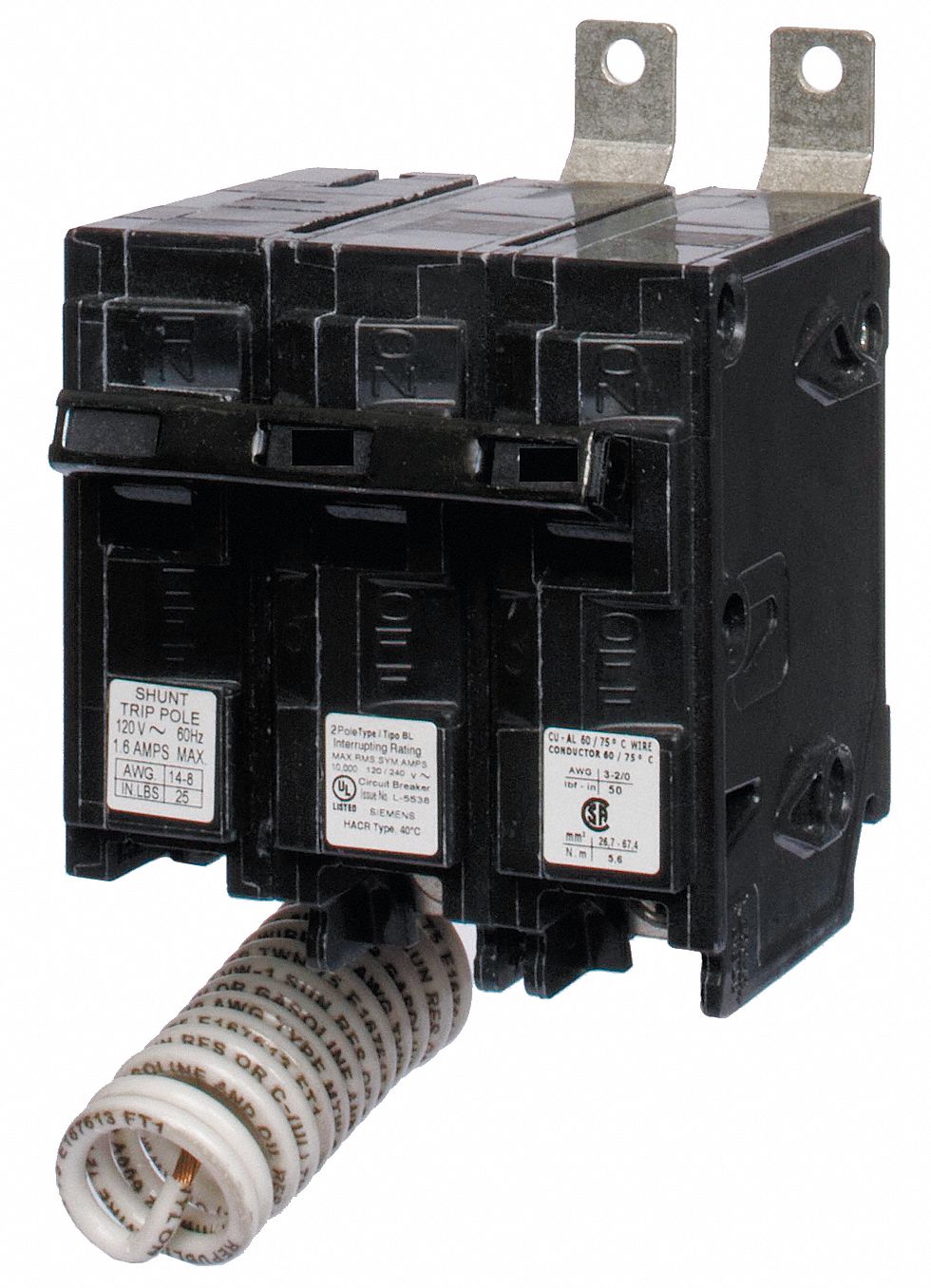

Miniature Circuit Breaker Amps 70 A AC Voltage Rating 120/240V AC Circuit Breaker Type Shunt Trip Number of Poles 2 DC Voltage Rating Not Rated Circuit Breaker Actuator Toggle Circuit Breaker Mounting Style Bolt On Compatible Panelboard/Load Center Series P1 Phase Single Series BL Max AIR Rating 65kA at 120/240V AC For Use With P1 Panelboards Terminal Connection Lug Frame Size 125A/HBL Length 2 in Width 3 in Depth 3 in Min Wire Size 8 AWG
Features
Extra Information
Processing Time:
2-3 days
