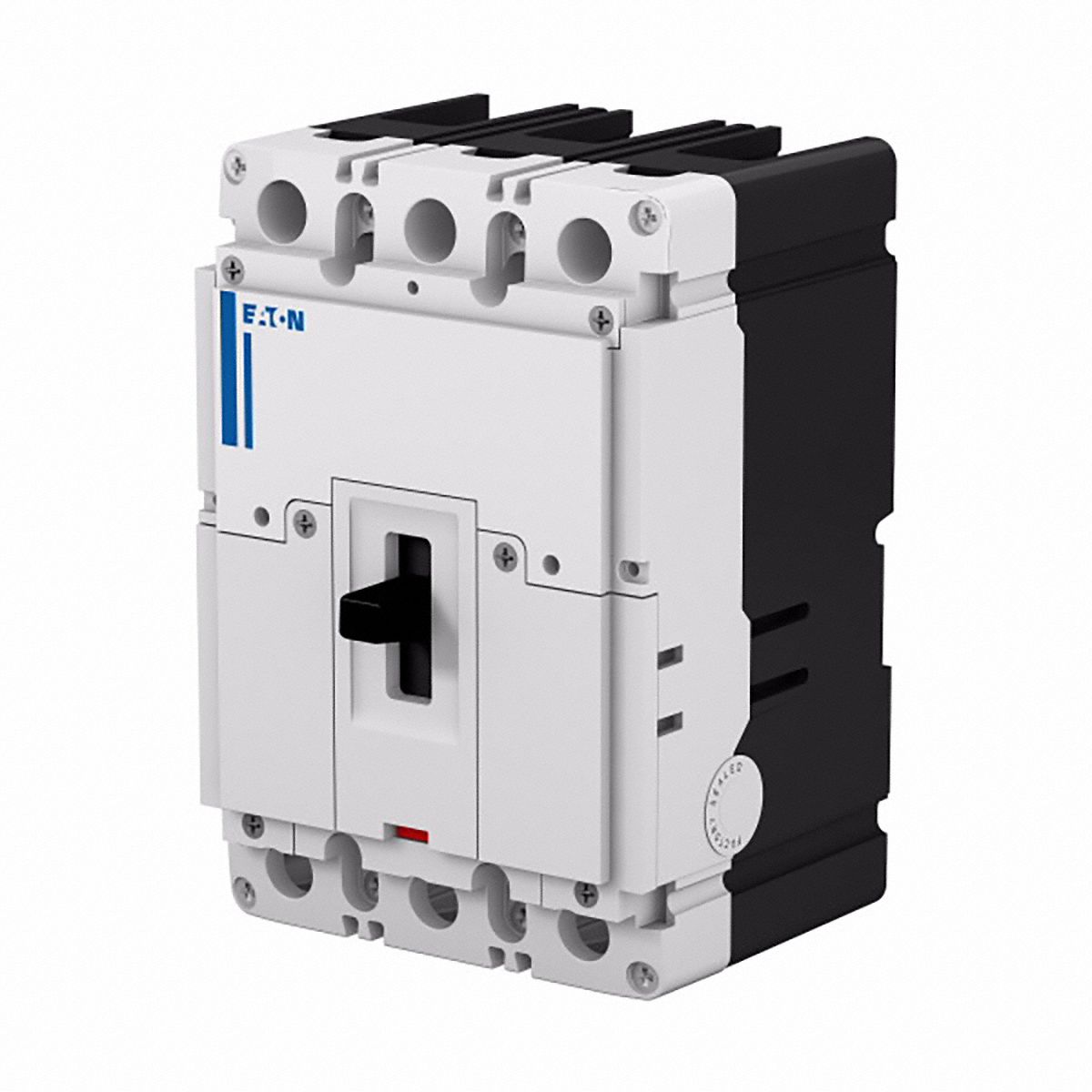

Circuit Breaker 40 A Amps AC Voltage Rating 600V AC Max AIR Rating 25 kA at 480V AC Circuit Breaker Type Standard Number of Poles 3 DC Voltage Rating Not Rated Terminal Connection Standard Terminals Load Only Trip Type Thermal Magnetic Phase Three Instantaneous Trip Fixed Phase Connection ABC Frame Size 225A/Frame 2 Height 6 in Width 4.
11 in Depth 3.
5 in Min Wire Size 14 AWG Max Wire Size 1/0 AWG Max Operating Temp 158 Degrees F Min Operating Temp -4 Degrees F- Alternate Part Numbers- 61HU02- PDG23F0040TFFL
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
DO
Manufacturer Name:
PDG23F0040TFFL
Manufacturer Part Number:
EATON
